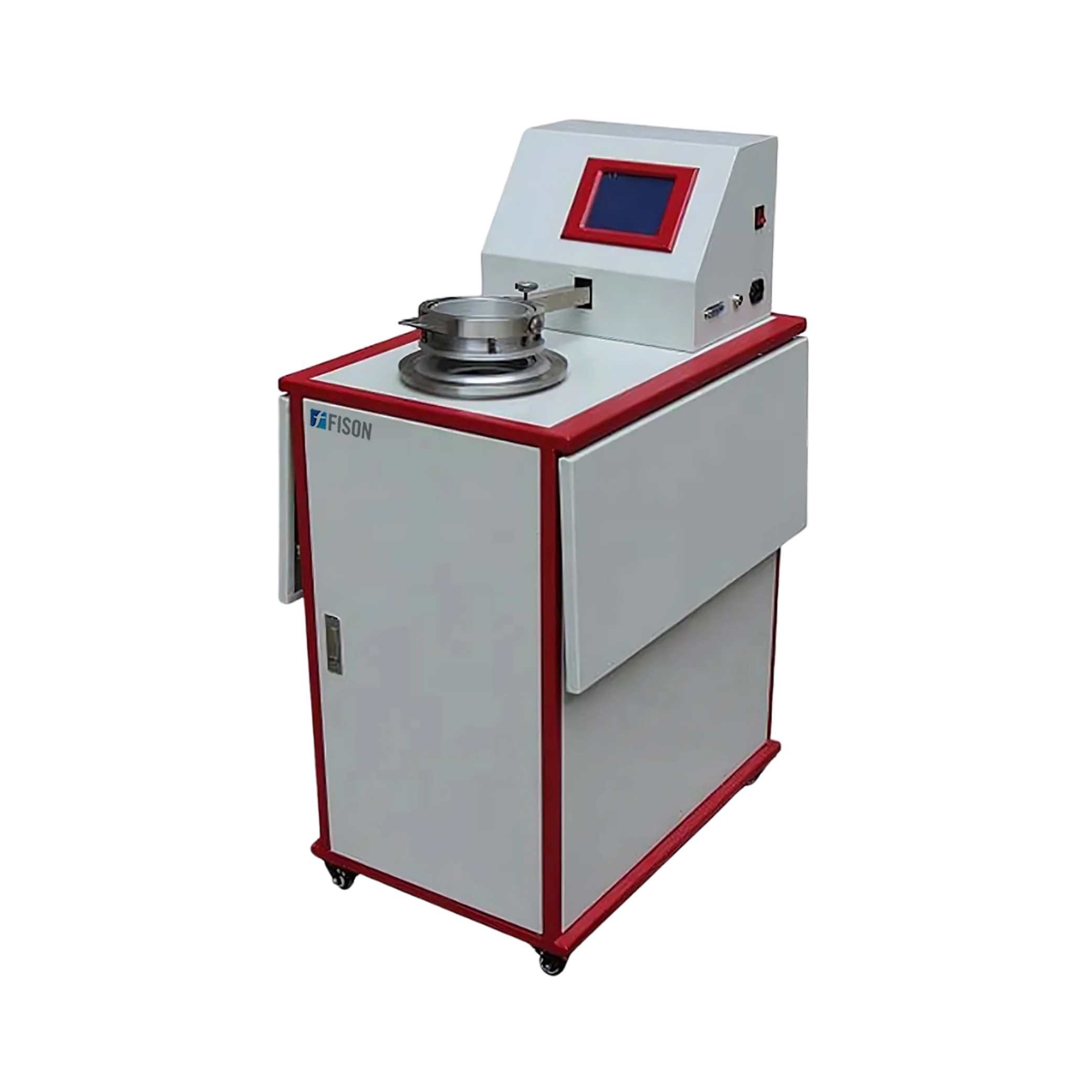

Air Permeability Tester

Air Permeability Tester FM-APR-A100 features a pressure difference range of 1 to 4000 Pa for precise air permeability measurements. The high-precision pressure sensor ensures reliable performance. It has an interchangeable nozzle system that adapts to different requirements. Our tester has monitored processes with real-time data visualization, providing instant feedback and insights.

SpecificationsPressure Difference Range 1 to 4000 Pa
Permeability Range 0.1 to 12000 mm/s

Room Temperature Control
Range
10°C to 35°C
Relative Humidity ≤ 80 %
Measuring Error ≤±2 %
Fabric Thickness ≤12 mm
Testing Area 5 cm², 20 cm², 50 cm², 100 cm²
Φ50 mm (≈19.6 cm²), Φ70 mm
(≈38.5 cm²)
Nozzle Parameters 11 pcs (Φ 0.8 to Φ 20)
Power Supply AC 220 V 50/60 Hz, 2 kW
Dimensions (L × W × H) 700 × 520 × 1100 mm
Packaging Dimensions (L ×
W × H)
780 × 580 × 1250 mm
Weight 93 kg
Gross Weight 120 kg

Features
1. Manual clamp mechanism
2. Replaceable nozzle system
3. Microprocessor test display
4. Computer port connectivity
5. Continuous test functionality
