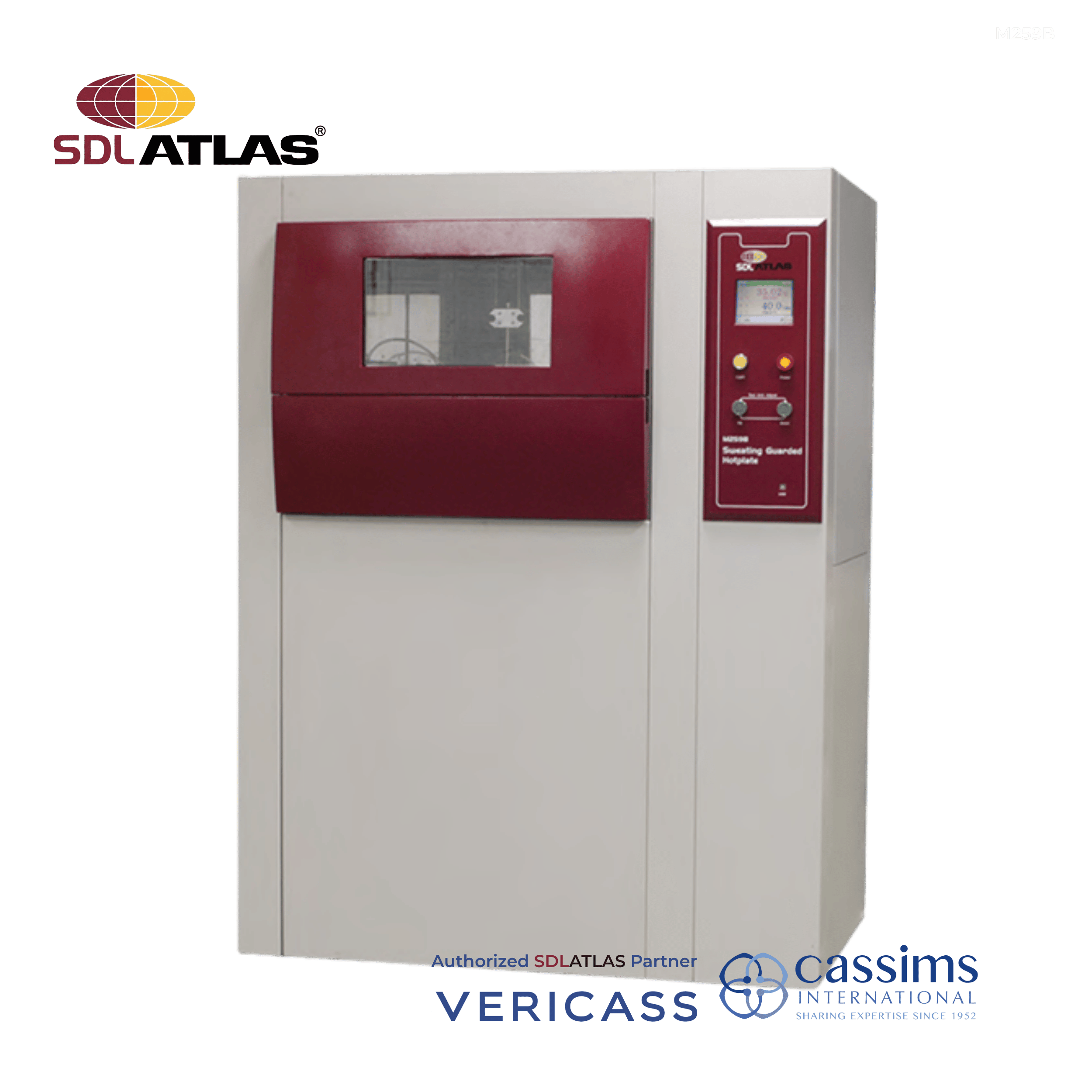

M259B
Measures thermal properties and water vapor resistance of fabrics under steady state conditions

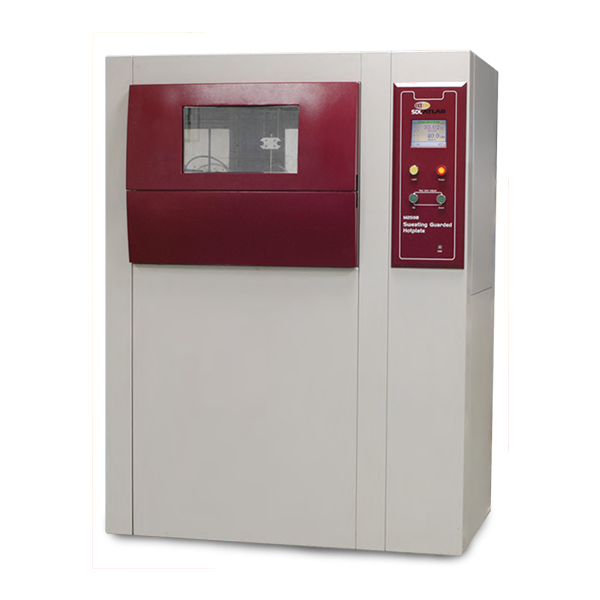

Often referred to as the “Skin Model“, the Sweating Guarded Hotplate measures thermal properties and water vapor resistance of fabrics and other materials under steady state conditions.
Accurate
Conditioned Chamber
The sophisticated purpose-designed climate chamber ensures the most rigid control and monitoring of:
Air Temperature
Air Speed
Relative Humidity
Heater Power Consumption
Three Section Hotplate
Test Plate
Guard Section
Bottom Plate
Each section electronically and independently maintains a constant temperature in the range of human skin (33 to 36°C)
Air speed sensor located directly above the sample
Other climate control sensors include:
Relative Humidity
Ambient Air Temperature
Versatile
Test samples with an area of 250 mm x 250 mm and a thickness of 70 mm can be tested
The instrument simulates both wet and dry skin conditions giving a complete sample profile
Precision
Test parameters are displayed on the instrument’s full color display at set increments, controllable by the operator.
Thermal Resistance (Ret)
Vapor Resistance (Rct)
Hotplate Temperature
Thermal Guard Temperature
Time Remaining in Test
Intuitive software can control the display and storage of real-time results for all test methods
Intuitive
Comes with a laptop loaded with specialized Control & Analysis Software
