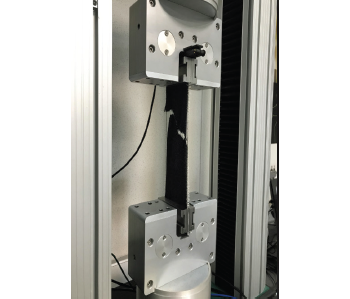

20kN Pneumatic Grip

Higher force pneumatic grip operated by an integral valve. 25 x 50mm (1 x 2in). Dual
pneumatically actuated jaws clamp the specimen on center line and maintain a positive
pressure even when a specimen reduces in thickness during the test. Interchangeable
jaw options available in support of positive gripping of material type and test standard
compliance.

Controlled using a foot pedal. For safety the initial gripping force applied to a specimen
is limited to a spring pressure. Full force test pressure is applied through activation by
operator using two hands away from the grip jaws.
Supports integration into automated systems.
