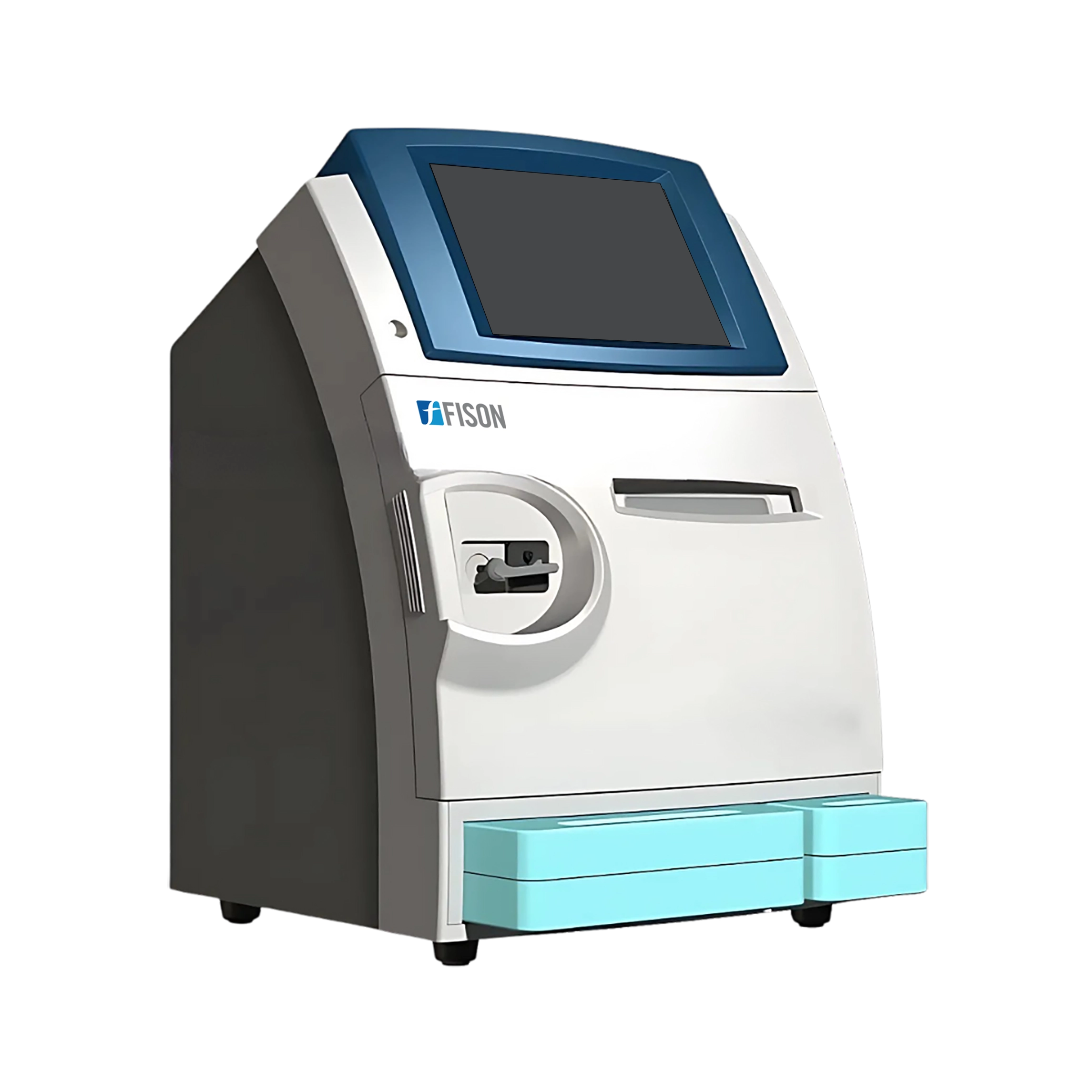

Blood Gas Analyzer FM-BGA-A100

Blood Gas Analyzer FM-BGA-A100 requires a sample volume of 120 µl for whole blood and 50 µl for capillary blood, ensuring flexibility in sample types. It supports multiple barcode types, enhancing versatility. Operating
within a temperature range of 15 °C to 30°C. Enhanced with seamless data input and an infrared human detector. The built-in thermal printer provides immediate printouts of results.

Specifications
Sample Whole blood, Serum, Plasma,
Dialysate, CSF
Sample Volume 120 µl whole blood , 50 µl capillary
blood
Analysis Time < 90s

Test Parameter pO2, pCO2, pH, K, HCT.B.P, Na+ , Cl ,
Ca++
Operating
Temperature
15 to 30°C
Storage
Environment
5 to 45°C
Input Variable Patient temperature, Hemoglobin,
FiO , Barometric Pressure
Measured Factor Hydrogen ion activity (pH): 6.000 to
9.000 pH
Partial pressure (pCO ): 1.607 to
26.67 Kpa, 8.0 to 200.0 mmHg
(PO ): 0 to 106.7 kPa,0 to 800.0
mmHg
Potassium ion (K): 0.5 to 15.0 mmol/L
Sodium ion (Na+): 20.0 to 200.0
mmol/L
Chloride ion (Cl ): 20.0 to 200.0
mmol/L
Ionized calcium (Ca++) : 0.3 to 5.0
mmol/L
Hct: 12.0 to 65.0%
B.P. : 500 to 800 mmol/L
Derived Factors pH (CH)pCO , pO , K , Na+ , Cl ,
Ca++ , Hct , B.P
Calibration Automatic, programmable 1-point
and 2-point calibration
Data Storage > 5000 result

Display 10.4 inches TFT touch screen
Printer Built-in thermal printer
Bar Code Reader Multiple types barcode type
Interface Serial line RS-232, TCP/IP interface,
USB port, Integrated Bar-Code
Reader
Battery 24 Nickel-metal hydride battery, 3.0
Ah
Power Supply 100 to 240 V, 50/60 Hz
Reagent Dimension
(W × D × H )
586 × 460 × 380 mm
Packaging
Dimension (W × D ×
H )
920 × 650 × 610 mm
Gross Weight (
Reagent )
9.7 kg
Gross Weight (Main
Instrument )
52.8 kg

Features
1. Blood gas analyzer is a highly accurate instrument
2. Analyses whole blood, serum, plasma, and more
3. Results in under 90 seconds
4. Stores over 5000 results

5. Touchscreen display
6. Automatic, programmable 1-point and 2-point calibration
7. RS-232, TCP/IP interface, USB port, integrated barcode
reader
8. Multiple parameters can be tested

Applications
Blood Gas Analyzer is ideal for healthcare, biotechnology,
veterinary medicine, and sports science.
