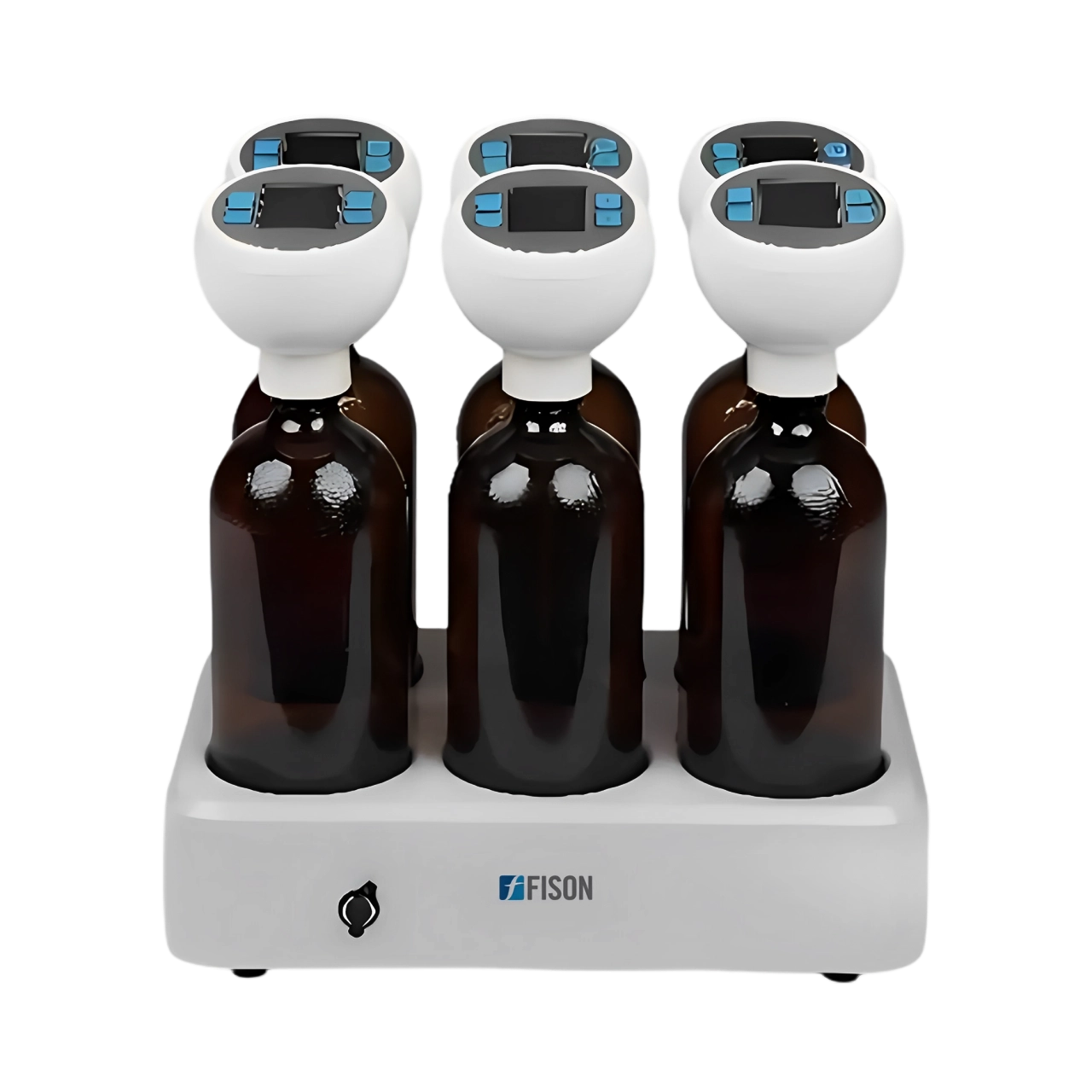

BOD Analyzer FM-BOD-A100

BOD Analyzer FM-BOD-A100 measures BOD levels in water with a range of 0 to 4000 mg/L. It uses a mercury-free pressure difference method. The large LCD screen provides intuitive operation. Project selection is easy. With a battery life of over 2 years, our device ensures reliable performance.

Specifications
Sample Capacity 580 ml
Measuring Range 0 to 4000 mg/L (direct
measurement)
Measurement
Accuracy
± 8 %
Culture Temperature 20 ± 1℃
Accuracy ± 8 %

Resolution 0.01 mg/L
Sampling Points ≤ 60 / cycle
Operating Principle No mercury pressure difference
method
Measurement
Capacity
Independent 6 groups of detection
Data Storage
Capacity
Can store 10 years of test data
Mixing Program controlled, magnetic
mixing
Testing Duration: 1 day to 30 days
Power Supply AC220V±10%/50-60HZ
Dimension 324 × 335 × 350 mm
Weight 10 Kg

Features
1. BOD Analyzer offers fully automated measurement
2. Six separate test terminals
3. Direct BOD concentration readings
4. Android intelligent system
5. Base with 6 USB ports
6. No pipeline design

Applications
BOD Analyzer is applied across diverse sectors, including
environmental monitoring, research institutions, and
wastewater treatment facilities
