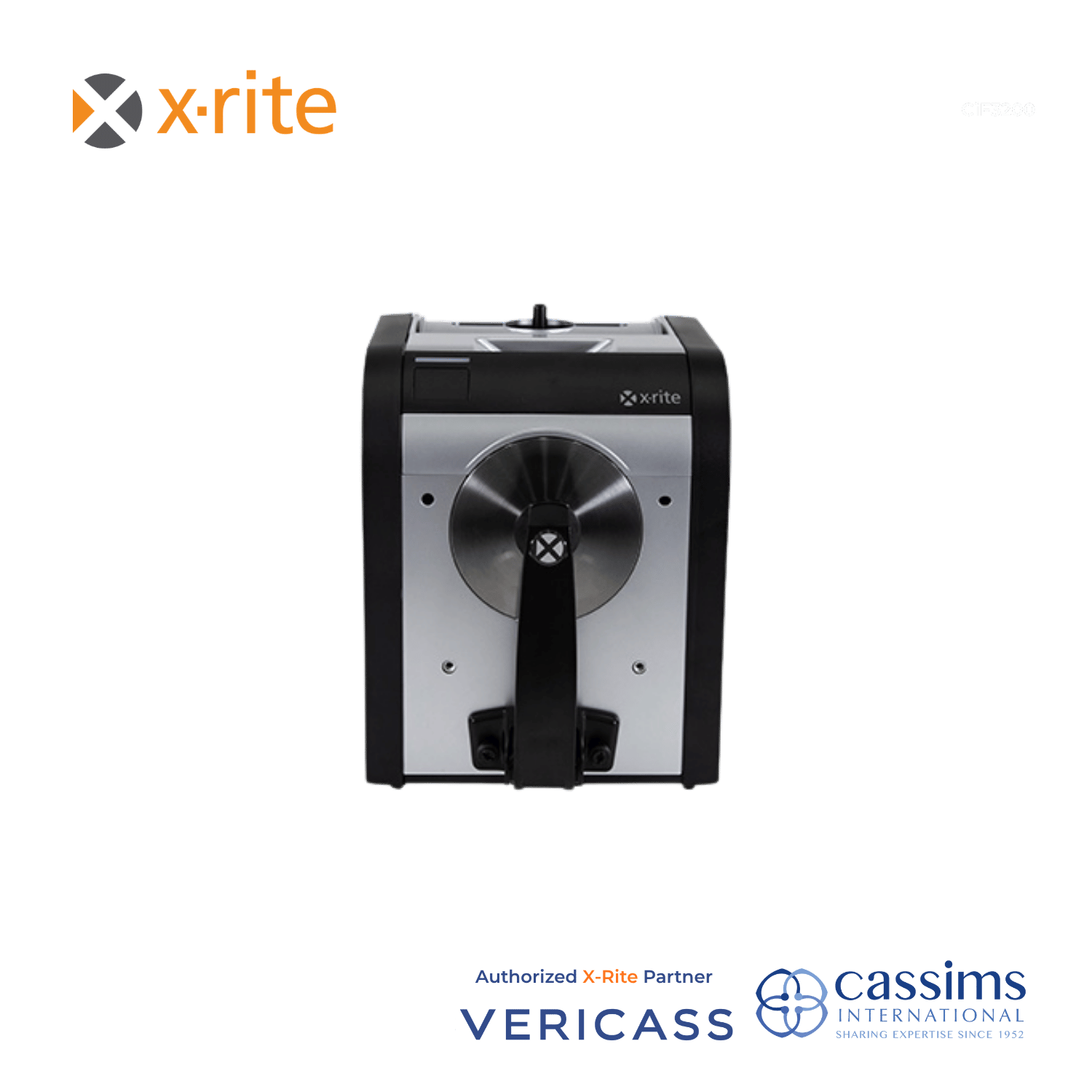

The CiF3200 is ideal for quality control on small, odd-shaped, or multi-colored items, including highly reflective samples, with a minimum measurement area of just 2mm. Its features, such as virtual apertures, on-screen targeting, and multi-color extraction, guarantee consistent results across industries, from luxury goods to consumer electronics.
Whether you manufacture luxury watches, plastic parts, consumer electronics, or durable goods, ensure color consistency for even the tiniest components by setting and communicating digital standards. Leverage objective, data-driven color evaluation to elevate your quality control process.

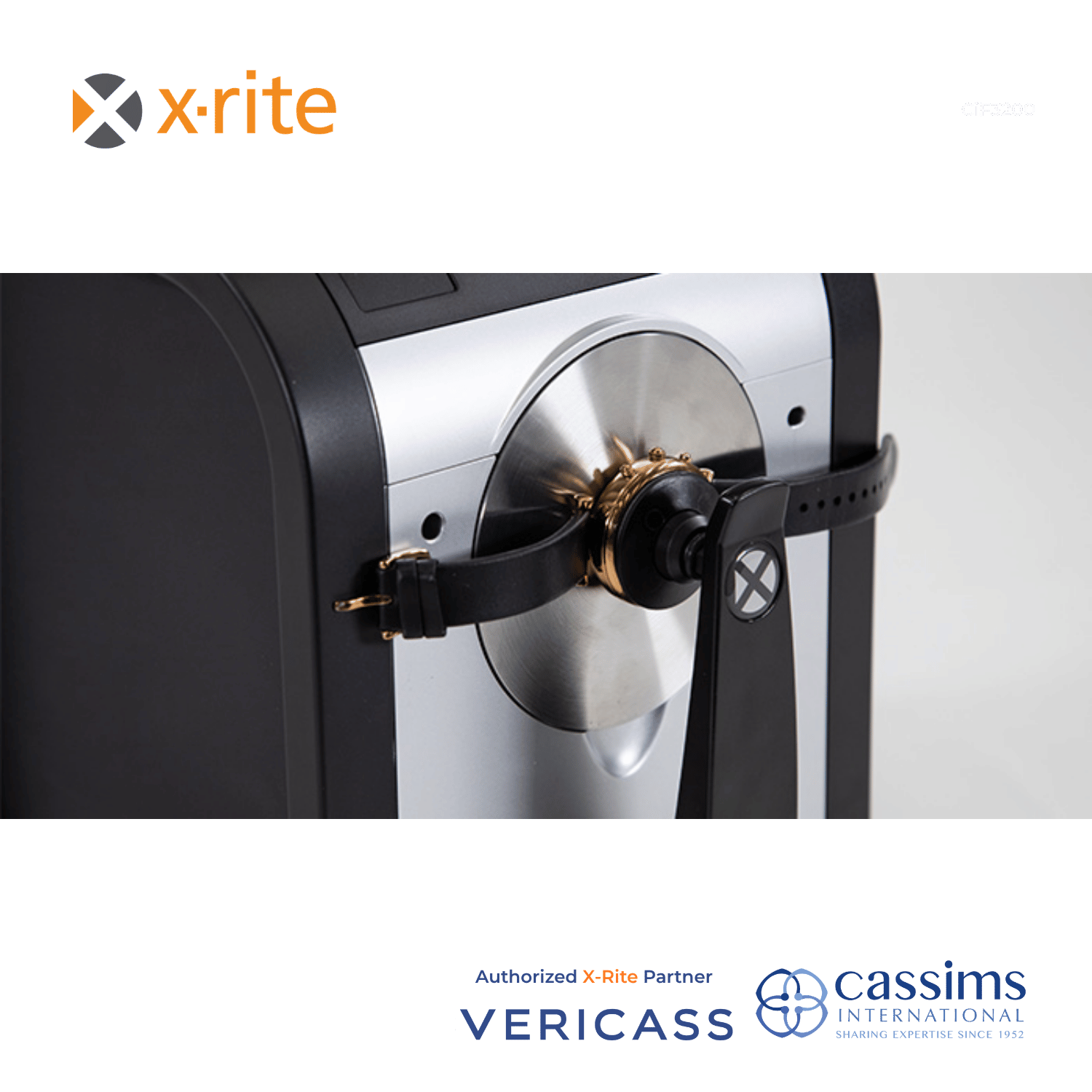

Easily analyze multiple colors on a single surface with the CiF3200’s automatic multi-color extraction. From intricate watch dials to small plastic parts, capture precise data for every color, ensuring color harmony from part to part. Perfect for maintaining consistency across diverse materials and suppliers.

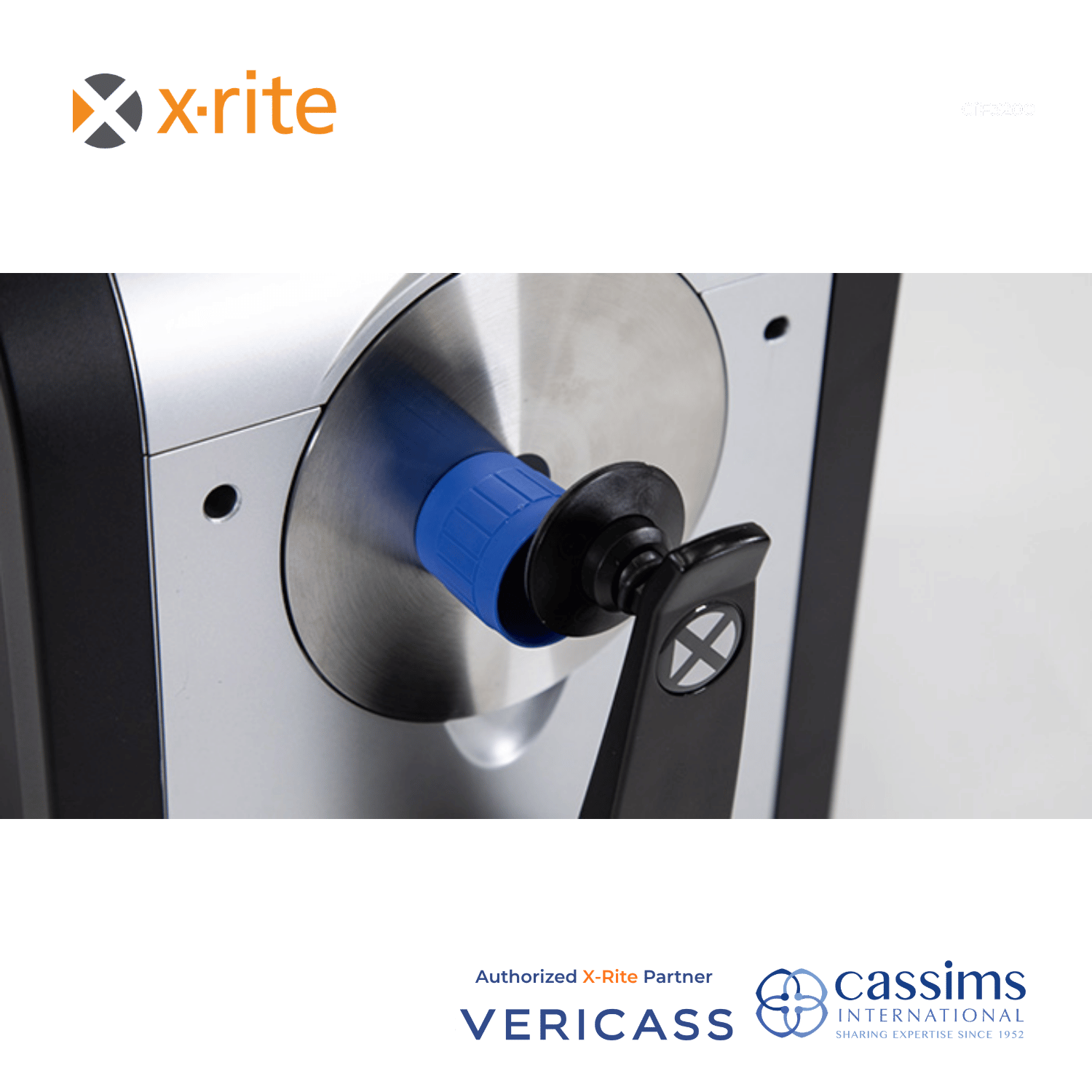

The CiF3200’s on-screen targeting feature allows you to precisely verify the measurement spot on a sample, significantly reducing rework by ensuring accurate measurements every time. Additionally, the ability to save images of the measurement for future validation provides a reliable reference, enhancing the overall quality control process and ensuring consistent results.
The virtual aperture offers sizes ranging from 2- 12 mm. The sample can also be measured without covering the entire aperture.
The CiF3200 is a very simple device to operate with one button and no screen.
Enhance quality control and couple the CiF3200 with Color iQC software for precise, consistent color measurements and streamlined processes.
| Aperture | 2-12 mm digital |
| Battery | No battery |
| Communication Interface | USB |
| Dimensions (length, width, height) | 8.25″ W x 10″ H x 10″ L |
| Humidity | 0-85% non-condensing |
| Illumination Spot Size | 16 mm |
| Image Contact During Measurements | Yes |
| Instrument Display | No display |
| Inter-Instrument Agreement | 0.15 DE* average on BCRA tiles (SPIN) |
| Lamp Life | 500,000 measurements |
No standards assigned.
