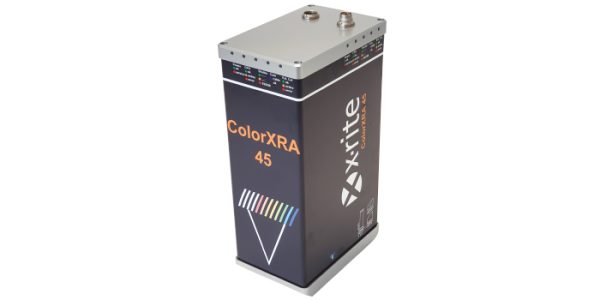

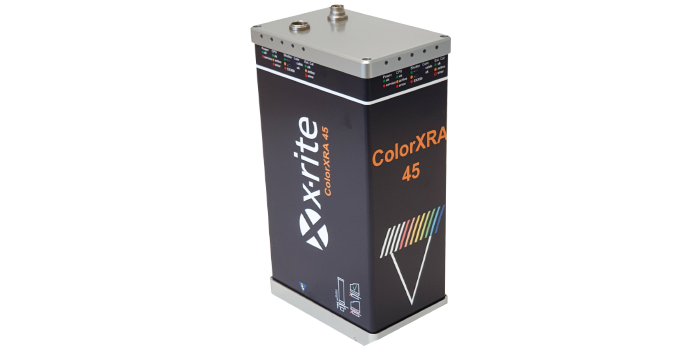

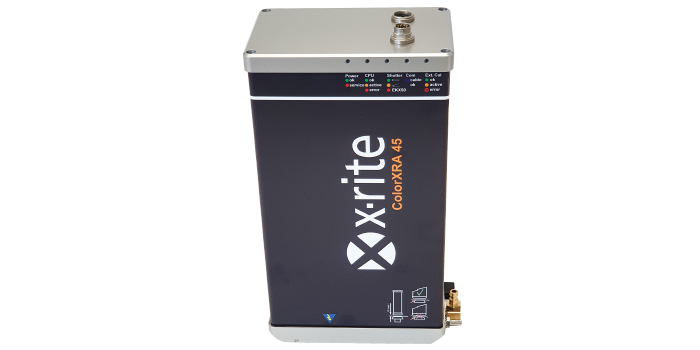

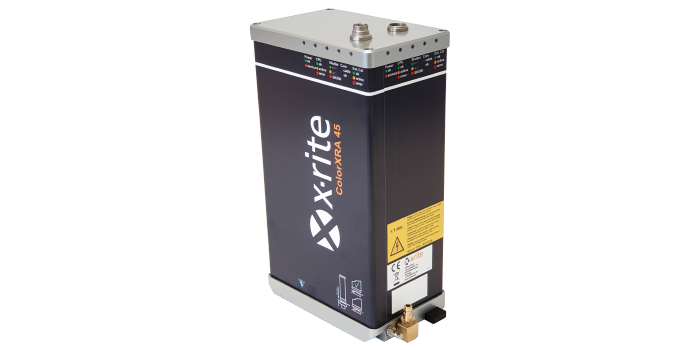

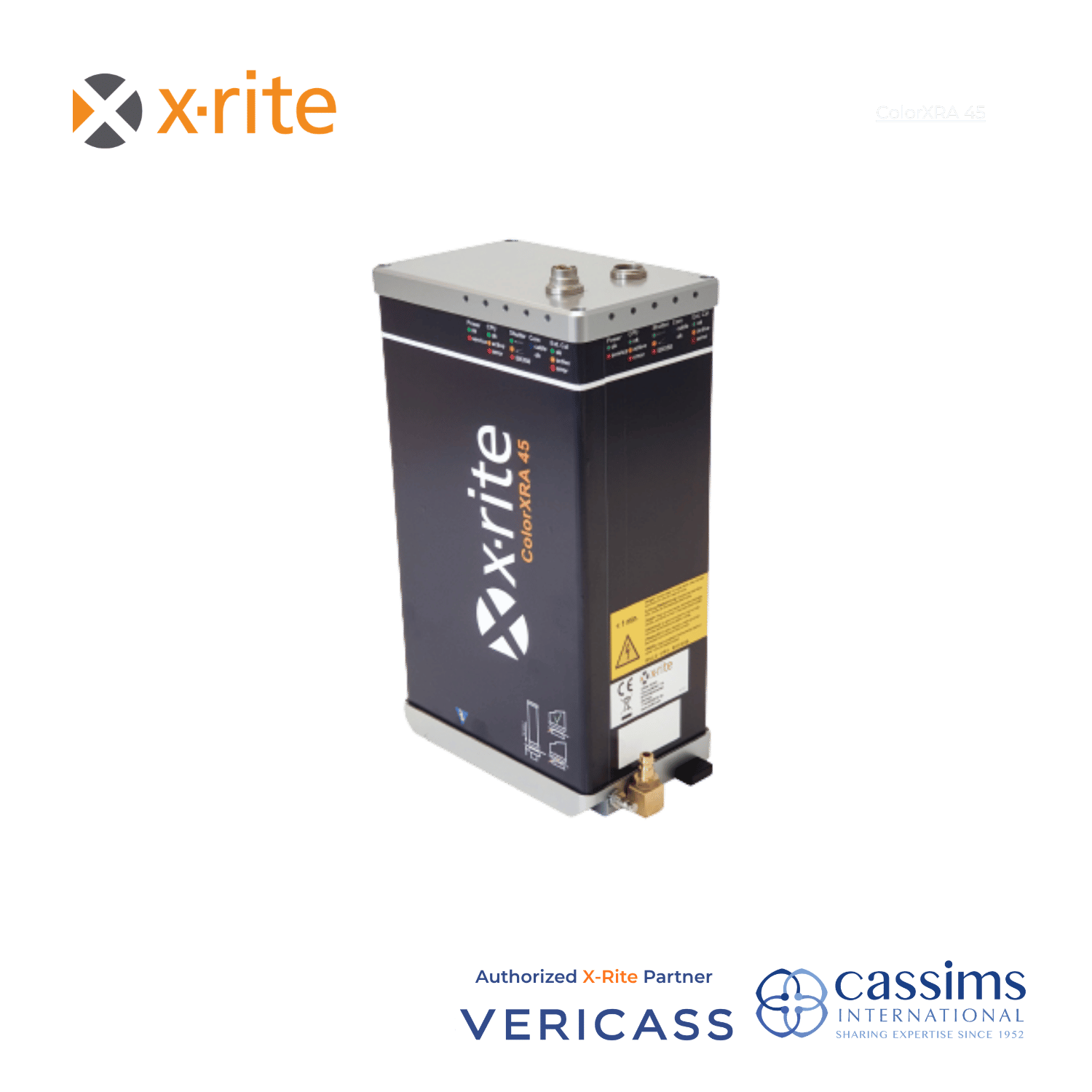

The ColorXRA 45 – X-Rite is a non-contact inline spectrophotometer designed for real-time color measurement of paper and plastic materials during production. It helps identify color variations early, maintain consistent quality, and support faster shade changes without stopping the production line.
Designed to meet the requirements of industrial paper and plastic environments, the industry-leading, non-contact ColorXRA 45 inline spectrophotometer measures color on a variety of paper and plastic materials where color is critical, including those with textured, finely patterned and glossy surfaces, and with optical brightening agents. When used with ESWin Closed Loop Color Control software, the ColorXRA 45 enables precise and automatic color adjustments to reduce rework caused by color variations and increase production output.
The ColorXRA 45 is mounted on a custom frame over the production line at the correct distance to detect even the smallest color deviations. When paired with ESWIN Closed Loop Color Control software, color corrections are carried out automatically and dye adjustments can be calculated in one step. ColorXRA 45 removes the guesswork around color control for less waste and rework, and a fast ROI.
With standardized 45°:0° measurement geometry and spectral resolution of 1 nm, the ColorXRA 45 maintains tight color tolerances throughout production without cutting a sample. Temperature and dirt detection sensors warn of issues that could impact final color. Base color and optical brighteners can be measured separately for optimal control over each component for stable measurements even when base weight or opacity changes.
Records and stores all color quality documentation for future evaluation according to ISO 9001.
Uses dual-beam measurement and automatic wavelength calibration to ensure exceptional measurement accuracy and stability.
Ambient light, web speed, and normal flutter do not influence measurement accuracy and external calibration is only required every four weeks.
| Specification | Details |
|---|---|
| Measurement Type | Inline, non-contact spectrophotometer |
| Applications | Paper and plastics |
| Measurement Geometry | 45°/0° |
| Measurement Time | Flash |
| Working Distance | 10 mm |
| Short-Term Repeatability – White | dL*, da*, db* < 0.03 |
| Spectral Range | 330–730 nm |
| Spectral Resolution | 1 nm |
| Measurement | Real-time production-line color measurement |
| Color Control | Compatible with ESWin Closed Loop Color Control |
| Calibration | Automatic wavelength calibration; external calibration every 4 weeks |
| Additional Sensors | Temperature and dirt detection |
