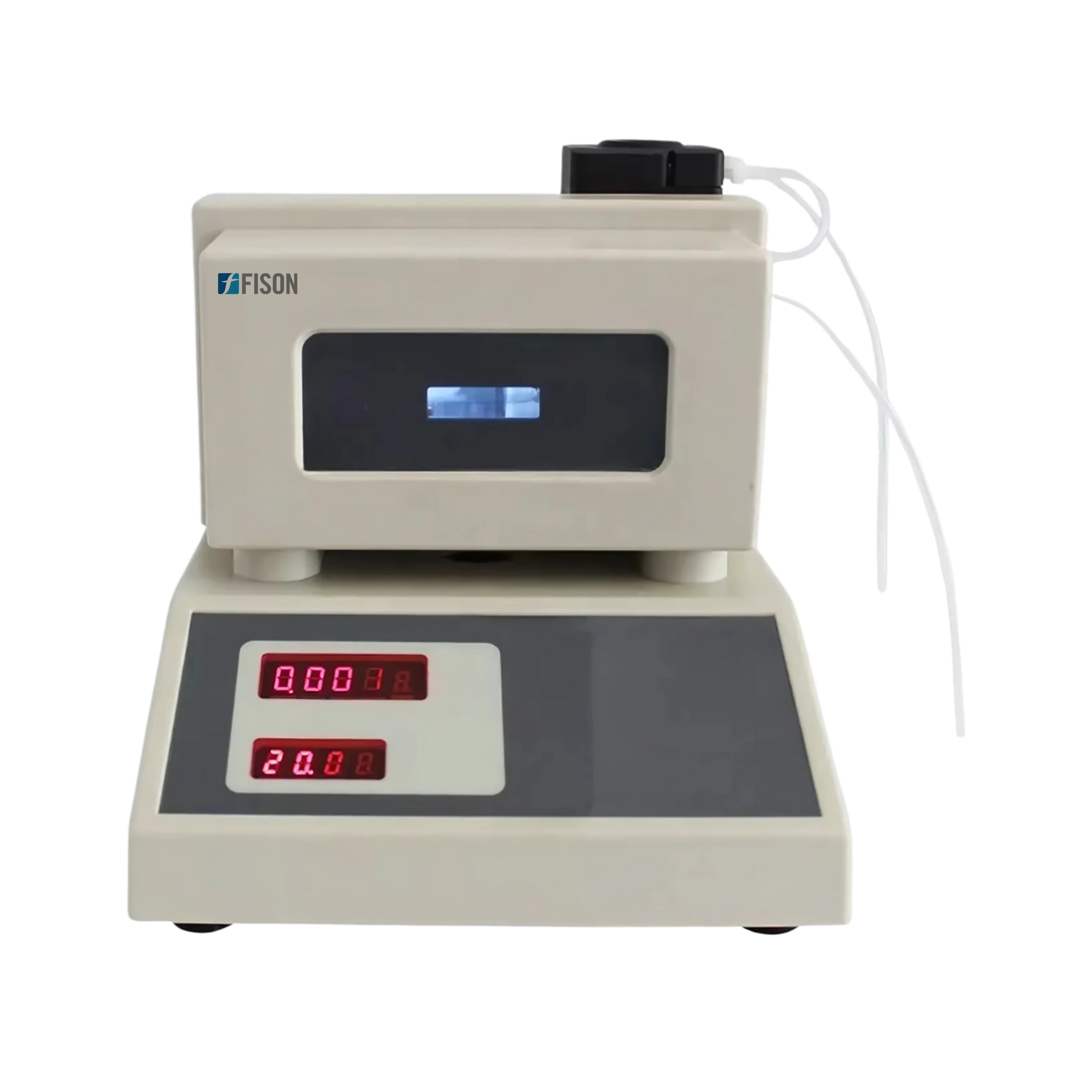

Electronic Liquid Densitometer FM-EDM-A100

Electronic Liquid Densitometer FM-EDM-A100, configured with the U-tube oscillation technique ideal for measuring the density of liquid between 0.0001 to 1.999999g/cm³. Pumping liquid is scaled by a resonant sensor. Our densitometer utilizes a single-chip computer and imports a high-speed XFMD chip for processing, providing high sensitivity and accurate data. Built-in memory can store a capacity of 80 sets of data for easy recall and
deletion.

Specifications
Measurement Range 0.0001-1.999999g/cm³
Resolution 0.0001g/cm³
Repeatability ±0.0006 g/cm³

Temperature Repeatability ±0.1°C
Accuracy 0.0001g/cm³
Automatic Temperature
Control
20±0.1°C
Environmental Temperature 5 to 35°C.
Sample dosage 2 Ml
Automatic Sampling
Detection
YES
Display LED
Data storage 80 measurements in
memory
Power supply 220V ± 22V, 50Hz ± 1Hz
Dimensions(L×W×H) 206 ×205 ×200 mm
Net Weight 3.6kg

Features
1. Inserted humidity sensors for intelligent environmental
monitoring
2. User-friendly interface easy to navigate the accurate
reading
3. Utilizing Self-developed technology to ensure complete
removal of residues in samples
4. Automated Cleaning Technology

5. Features a digital display of precise and easy-to-read
density values

Applications
It is mainly used in the research and laboratories for
measuring the density of diverse liquid samples. Alcohol
and sulphuric acid are converted into concentration in
beverage industries.
