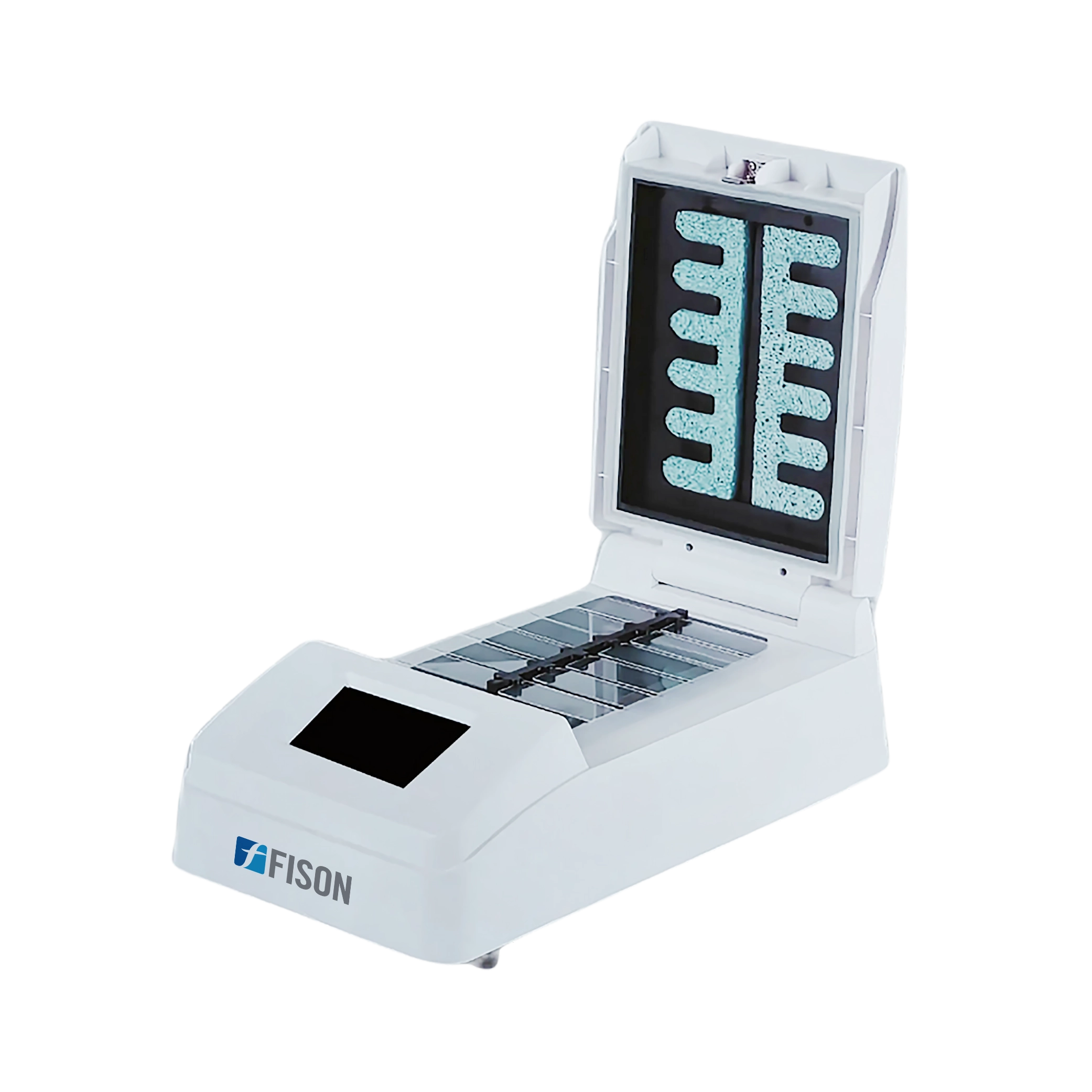

FISH Hybridization System FM-FHS-A100

FISH Hybridization System FM-FHS-A100 is a compact and benchtop model, equipped with a FISH processing step and three operation modes as denaturation plus hybridization, hybridization, and multiple-step operation.
It offers 12 slide capacity, 0 to 100°C temperature range, and automatic cooling and warm-up function with 1 min to 99 h 59 min of time range. Features a touch screen interface, automatic power recovery, and high precision temperature control, and 105 custom stored programs, ensuring reliable results with high efficiency and accuracy.

Specifications
Capacity 12 slides

Temperature
control range
RT +5 to 100°C
Temperature
setting range
0 to 100°C
Temperature
accuracy
≤ ± 1℃
Temperature
uniformity
≤ ± 1℃
Time range 1 min to 99 h 59 min
Heating time ≤ 2 min (37°C to 95°C)
Cooling time ≤ 6 min (95°C to 45°C)
Operation modes: Denaturation and hybridization,
hybridization and multiple-step
Display Touch screen
Programs 105 custom stored programs
Power supply AC 110/220 V, 50/60 Hz
Power 350 W
Dimension
(W×D×H)
440×220×120 mm
Weight 4.5 kg

Features

1. A compact and benchtop model adopted with FISH
processing step, reduce operating time

2. Three operation modes: denaturation plus hybridization,
hybridization, and multiple-step
3. 12 slides capacity, 0 to 100°C of temperature range and 1
min to 99 h 59 min of time range
4. Automatic cooling and warm-up function, reduces
experimental procedure
5. Touch screen interface, for easy operation and
monitoring
6. Automatic power recovery function and high precision
temperature control
7. 105 custom stored programs, reliable results with high
efficiency and accuracy
8. Highly-efficient, stable and convenient operation

Applications

FISH Hybridization System is used to detect the genetic material in human cells, including specific genes or portions of genes, genetic abnormalities associated with cancer, for diagnosing infectious diseases etc. across
cytogenetic laboratories, clinical research, cancer research etc.
