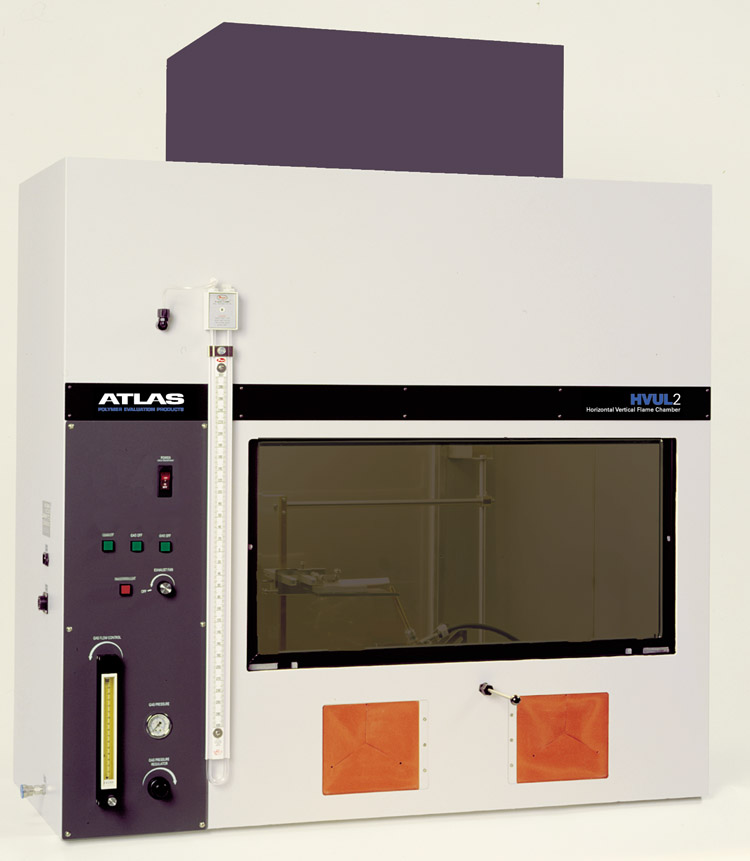

- Burner angle adjustable to 0º, 20º, 45º
- Flexible iris hand access ports
- Remote burner positioning
- Sliding tempered glass viewing window
- Removable burner carriage assembly
- Flexible laboratory fixturing
- Interior light
- Digital timers located in line of sight with specimen
- Digital timers with resolution of 0.1 s
- Remote control with push button reset for in-chamber event timing.
- Electrical gas shut-off solenoid
- Gas control system
- Flame confirmation kit (ASTM D5207)
- Black interior finish
- Performs all UL 94 tests (Except Section 10.0 Radiant Panel Test)
- Four specimen holders and test packages for all five Bunsen burner tests: Horizontal, Vertical 20 mm, Vertical 125 mm, Vertical Thin Film, and Horizontal Foamed Material Tests
- Bench top chamber (Volume greater than 0.75 m3)
- Tirril Burner
- Multi-directional specimen and burner positioning apparatus
- Quick release mount for burner during manual operation
- Large sliding, tempered-glass window for test viewing
- Exhaust blower (1/3 hp) with variable speed control (580 cfm in free air)
- Sliding damper for draft free chamber
- Manometer/pressure gauge, 300 mm
- Four flame height and sample gauges
- Simple burner angle adjustment (0°, 20°, 45°)
- Specimen holders for all five Bunsen burner tests
- Digital timers for specimen test duration, 0.1 s resolution
- Remote control with push button reset for in-chamber event timing
- Quick release mount for burner during manual operation
- Hand access openings with irises for closed window access
- Physical Dimensions
- Interior Dimensions: 122 cm (48”) W x 112 cm (44”) H x 60 cm (23.5”)D
-
Options–
Voltage and Frequency Available:
120 V 60 Hz, 1.5 A230 V 50 Hz, 0.75 A -
Standards–
Reference Test Standards:
- UL 94
- ASTM D635, D3801, D4804, D5048, D4986,
- IEC 60695 Part 11-10
- IEC 60695 Part 11-20
- IEC 707 (partial), ISO 9772 and ISO 9773
