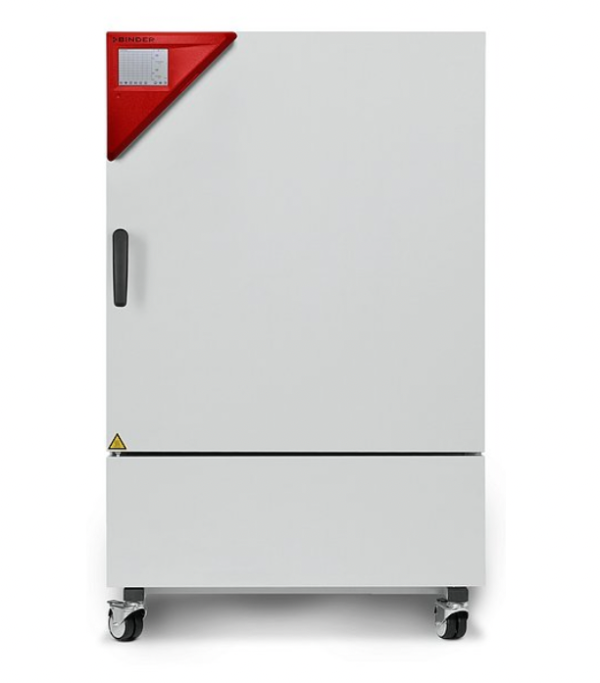

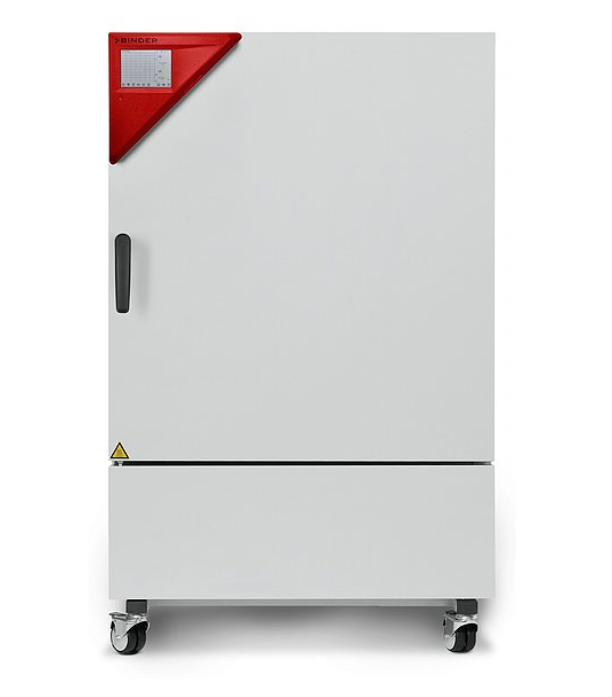

KBF LQC Series – Humidity Test Chambers with ICH-Compliant Light Source and Light Dose Control

Main Features

• Temperature range: 0 °C to +70 °C
• Temperature range with light: +10 °C to +60 °C
• Humidity range: 10 % to 80 % RH
• positionable illumination cassettes with ICH-compliant UV/Vis light source
• Independent light-dose control of UV-A and visible light with spherical sensors
• APT.lineTM preheating chamber technology
• Humidity regulation with capacitive humidity sensor and vapor humidification
• Inner chamber made of stainless steel
• BINDER Multi Management Software APT-COMTM Basic Edition
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Unit self-test for comprehensive status analysis
• Tight-sealing inner door made of safety glass (ESG)
• Avoidance of glass corrosion by special TIMELESS coating stainless steel racks
• Access port with silicone plug, 30 mm, left
• 4 stable castors, two with brakes
• Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
• Computer interface: Ethernet
• Door heating

240 Model:

• 36.45 W x 57.5 H x 31.52 D (in.)
• 925 W x 1460 H x 800 D (mm)

720 Model:

• 49.3 W x 75.8 H x 35.07 D (in.)
• 1250 W x 1925 H x 890 D (mm)
