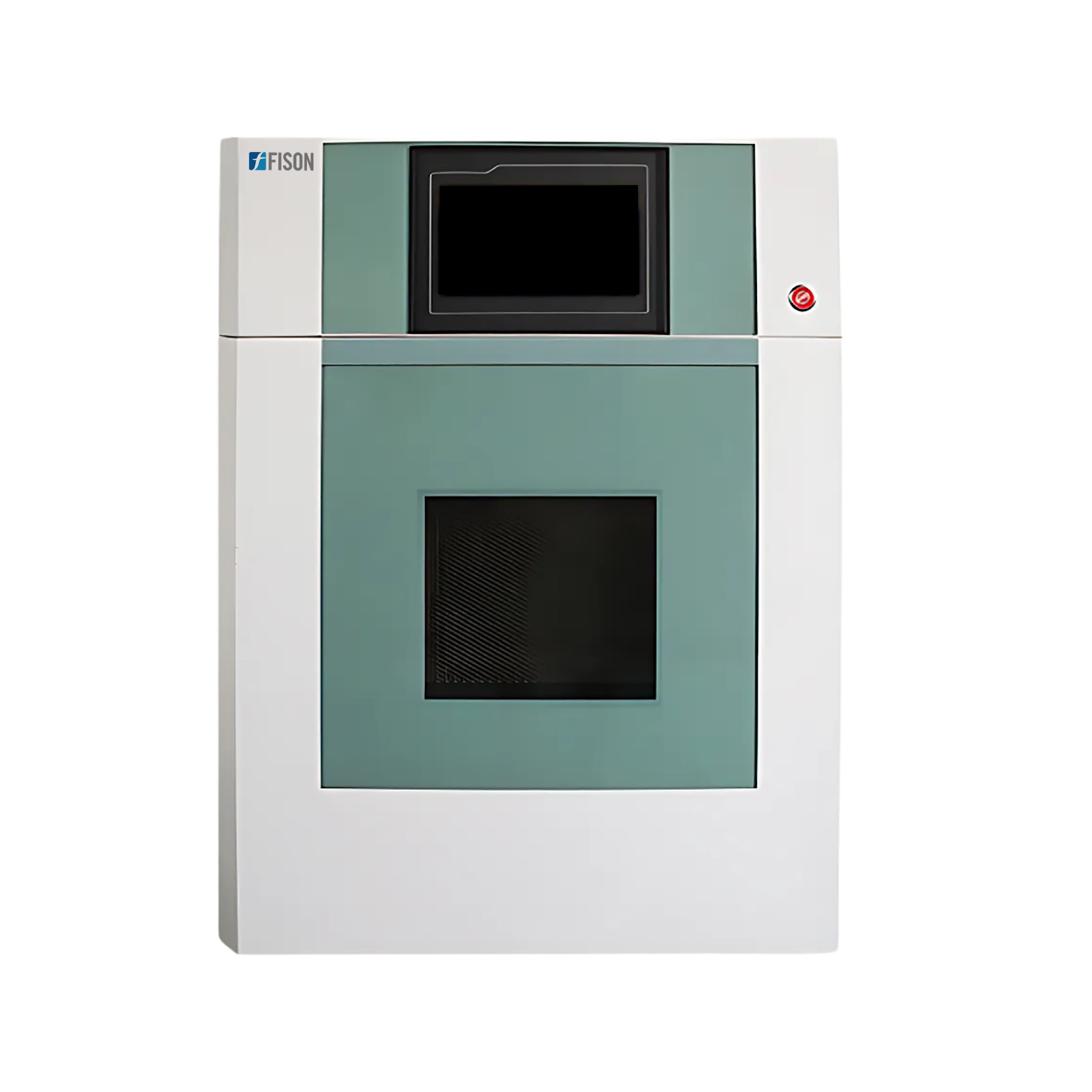

Microwave Digestion System FM-MDS-A10

Microwave Digestion System FM-MDS-A100 features a chamber volume of 58L and accommodates up to 12 vessels, optimizing throughput for large sample volumes. It offers a microwave frequency of 2450MHz, facilitating
rapid and uniform heating. Integrated with a noncontact infrared temperature sensor, capable of measuring temperatures up to 350°C. Equipped with an 8-inch TFT LED touchscreen providing intuitive navigation and monitoring of parameters.

Specifications

Chamber
Volume
58L
Microwave
Frequency
2450 MHz

Microwave
Output Power
0 to 2000W
Maximum
Temperature
350ºC
Temperature
Accuracy
±0.5ºC
Temperature
Sensor
Non-contact infrared temperature
sensor
Maximum
Pressure
10MPa
Pressure

Accuracy

±0.01Mpa
Vessel Quantity 12 Vessels
Vessel Volume 100ml
Vessel Material Vessel made of TFM; Explosion-proof
outer vessel made of PEEK aerospace
composite material
Cooling Method Forced air cooling
Exhaust and
Cooling System
acid-resistant centrifugal fan, exhaust
air volume is not less than 5m³/min
Power
Consumption
2600W
Power Supply AC220±10%,50/60Hz
AC110V,60Hz (Optional)
Dimension 590 × 620 × 830mm

Weight 75kgs

Features

1. Forced air cooling method
2. SUS316 stainless steel chamber
3. Explosion-proof self-locking furnace door
4. 360° continuous unidirectional rotation
5. Incorporated with an exhaust cooling system
6. Shutdown and alarms on temperature/pressure failure

Applications

Microwave Digestion System is widely utilized in environmental analysis, food and beverage testing, pharmaceutical analysis, geochemical studies, and clinical research.

Accessories

Turntable bracket, PEEK
explosion-proof outer× 12
TFM inner vessel ×12
Infrared temperature sensor

Graphite acid evaporator
