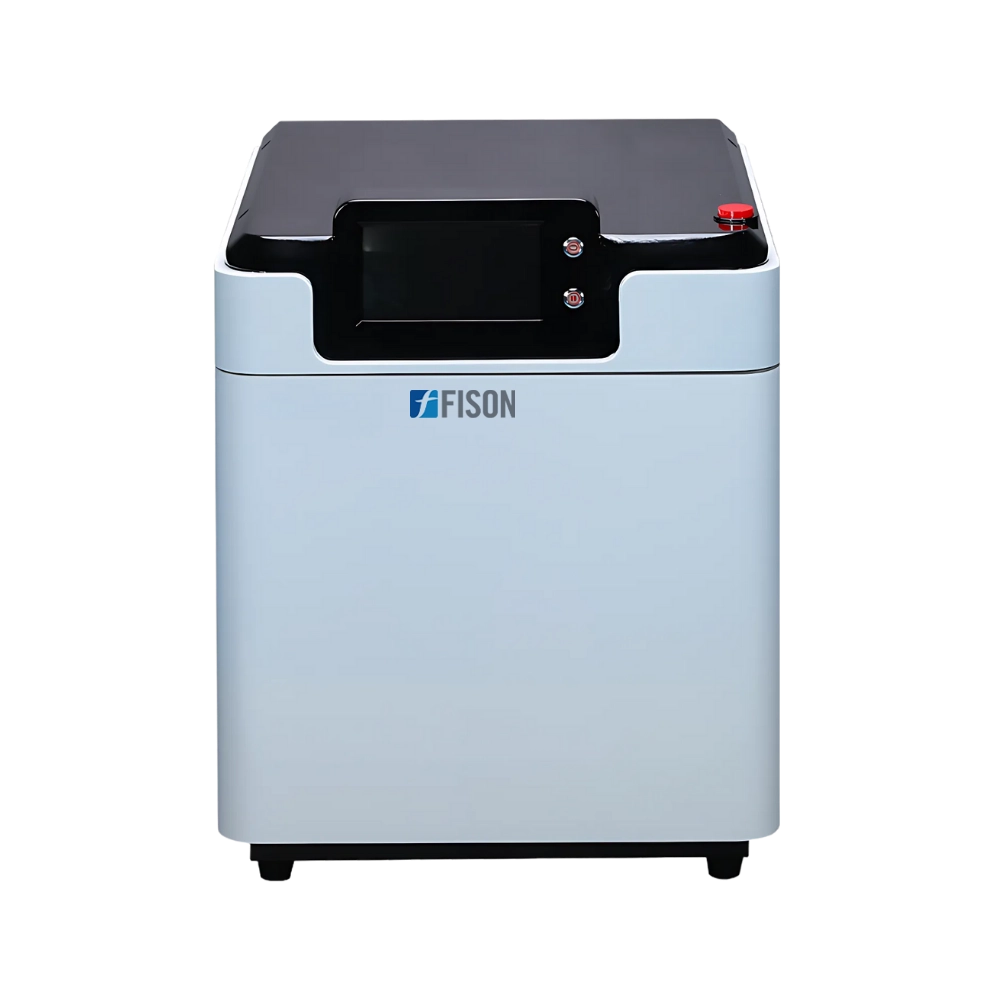

Microwave Digestion System FM-MWD-A100

Microwave Digestion System FM-MWD-A100 breaks down complex samples into simple ones for precise analysis. It can accommodate 12 vessels and has a vessel volume of 100 ml. Real-time monitoring effectively tracks the condition of the digestive process. The system’s effectiveness, security, and user friendliness have won users all over the world.

Temperature Accuracy ± 0.1 ℃
Display Accuracy
(Temperature)
± 0.1 ℃
Pressure Monitor Contactless Sensor
Pressure Control Range 0 to 15 MPa
Pressure Accuracy ± 0.01 MPa
Display Accuracy
(Pressure)
± 0.01 MPa
Sample Vessel Material Imported TFM
Protection Vessel
Material
Peek + Glass Fiber
Display 7-inch Touch Screen
Rotation 360° Continuous Rotating
Microwave Tank 316L Stainless Steel tank with
Corrosion-Proof Coating
Microwave Power
(Adjustable)
0 to 1000 W (Adjustable)
Microwave Leakage < 5 mw/cm²
Air Exhaust High power corrosion-proof air
blower
Power Supply AC 220 V ± 10%, 10A, 50/60 Hz
Dimension (L × W × H) 490 × 560 × 630 mm
Weight 47 Kg

Features

1. Uniform sample digestion due to vertical design
2. Real-time monitoring of temperature and pressure
3. Contactless sensors reduce maintenance costs
4. Imported vessel material enhances safety
5. User-friendly color touch screen interface
6. Carbon Fiber Reinforced Polymer improves durability
7. 316L Stainless steel with Teflon coating provides
resistance against acid corrosion

Applications

Microwave Digestion System is used for preparing various samples in departments like quality control, environmental monitoring, and scientific research across various industries.

Accessories

Sample rotor Auxiliary platform Digestion vessel Vessel
holder Pressure calibration ring
