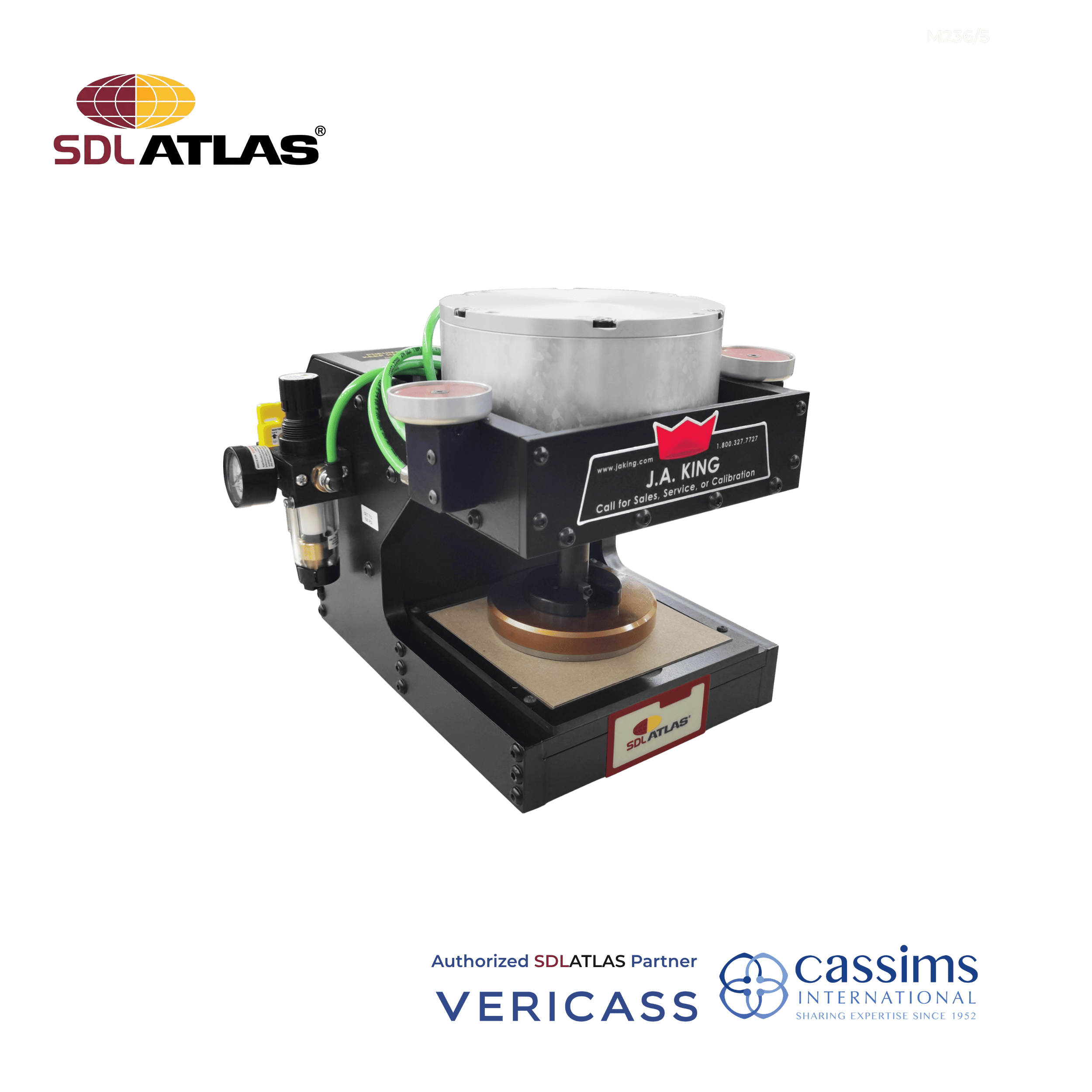

Heavy duty tabletop press with 125 mm (6 in.) bore air cylinder, 50 mm (2 in.) cutting depth and 152.4 mm x 152.4 mm (6 x 6 in.) cutting table.
Pneumatic activation at 100 PSI (7 Bars) produces 1282 kg (2825 lb) of cutting force which can easily cut through multiple fabric layers. Provided with automatic sample ejection and two hand control for safety and regulator filter.
Completely air operated – no wiring required (Laboratory standard compressed air supply required). Included 2.6974 inch die and 100 cutting pads (4.4424 or other special die shapes and sizes available on request).
Ordering Information
| Ordering Code | Item Description |
|---|---|
| 300993 | Pneumatic Sample Press |
| 300994 | Circular Die 100 cm² for European Fabric Yield System |
| 201110 | Circular Die 68.53 mm (2.698 inch) Diameter for US Fabric Yield System |
| 300995 | Cutting Pads 6 × 6 inch (Pack of 100) |
| G265 | Silent Laboratory Compressor (Optional) |
