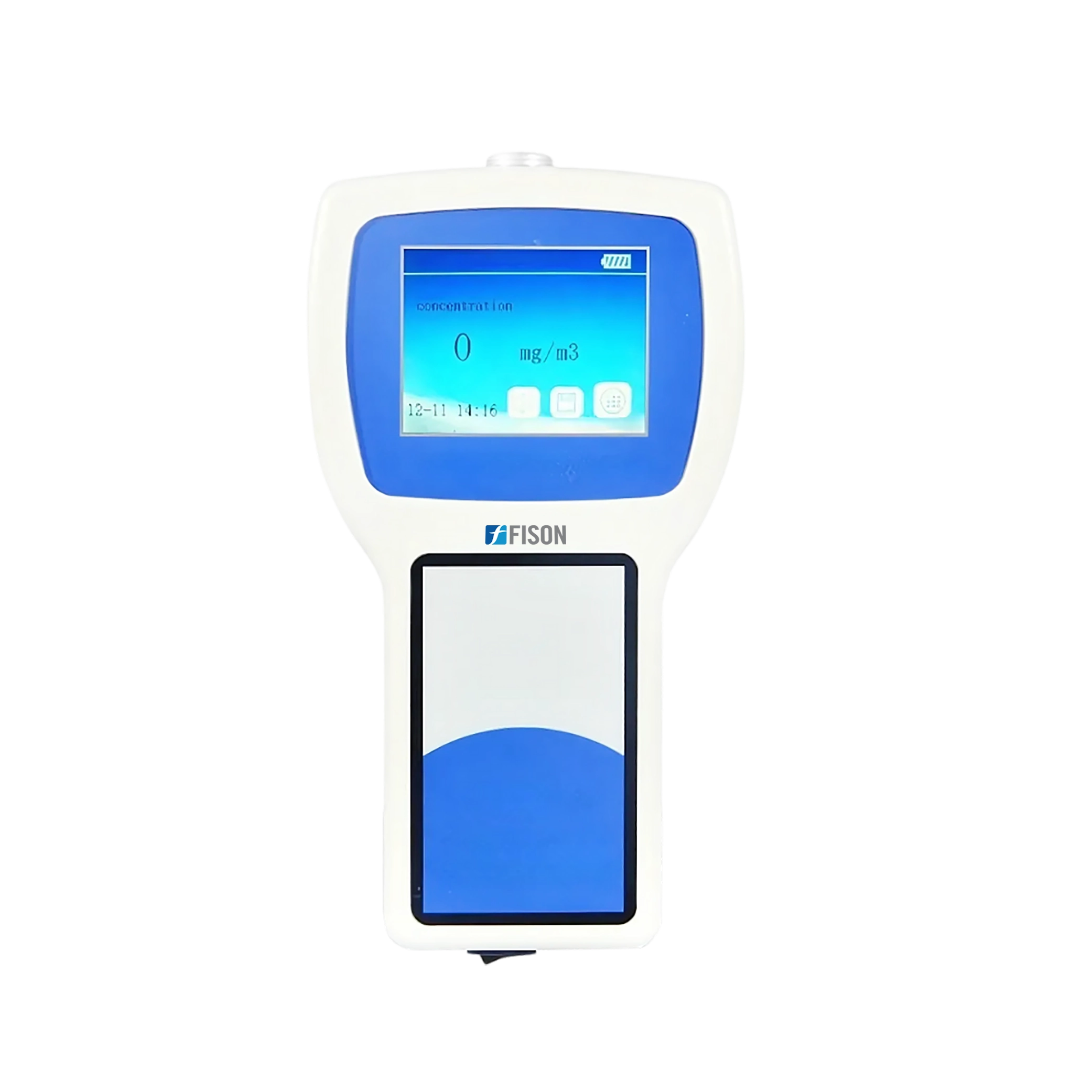

Portable Dust Monitor FM-DTM-A101

Portable Dust Monitor FM-DTM-A101 is equipped with a laser detector that categorizes particulate matter into PM10, PM2.5, and PM1 fractions. Incorporates a high-power carbon film self-priming pump and follows the
pump suction method for the detection of particles. Our dust monitor offers dual-unit measurement, enhancing versatility for diverse standards and preferences. It has a user-friendly LCD touchscreen, ensuring intuitive and
seamless operation.

Specifications

Detection gas Dust (PM10, PM2.5, PM1)
Detection method Pump suction
Detection principle Laser

Measurement
range
(0 to 1000) μg/m3; (0 to 1000) mg/m3
Resolution 1μmg/m3; 1mg/m3
Temperature
Range
-20 ℃ to 60℃
Humidity 0 % to 95 % RH
Sampling time 1 minute
Sampling flow 0.5 l/min
Frequency ≥ 2 seconds
Alarm Alarm sound and light
Response time < 20s
Data storage 1000 (erasable)
Bluetooth
transmission
10 meters (with obstacles); 30 meters
( no obstacles
Durability 5 years
Dimension 230 ×130 × 43cm
Weight 400g

Features

1. Integrated with sound and light alarm
2. Operated with one key switch
3. Supports data storage
4. Portable and lightweight

5. Optional blue tooth connection
6. Features clock display and modification
Applications
Widely utilized in occupational safety, environmental
monitoring, indoor quality assessments, regulatory
compliance, clean monitoring, educational and training
purposes.
