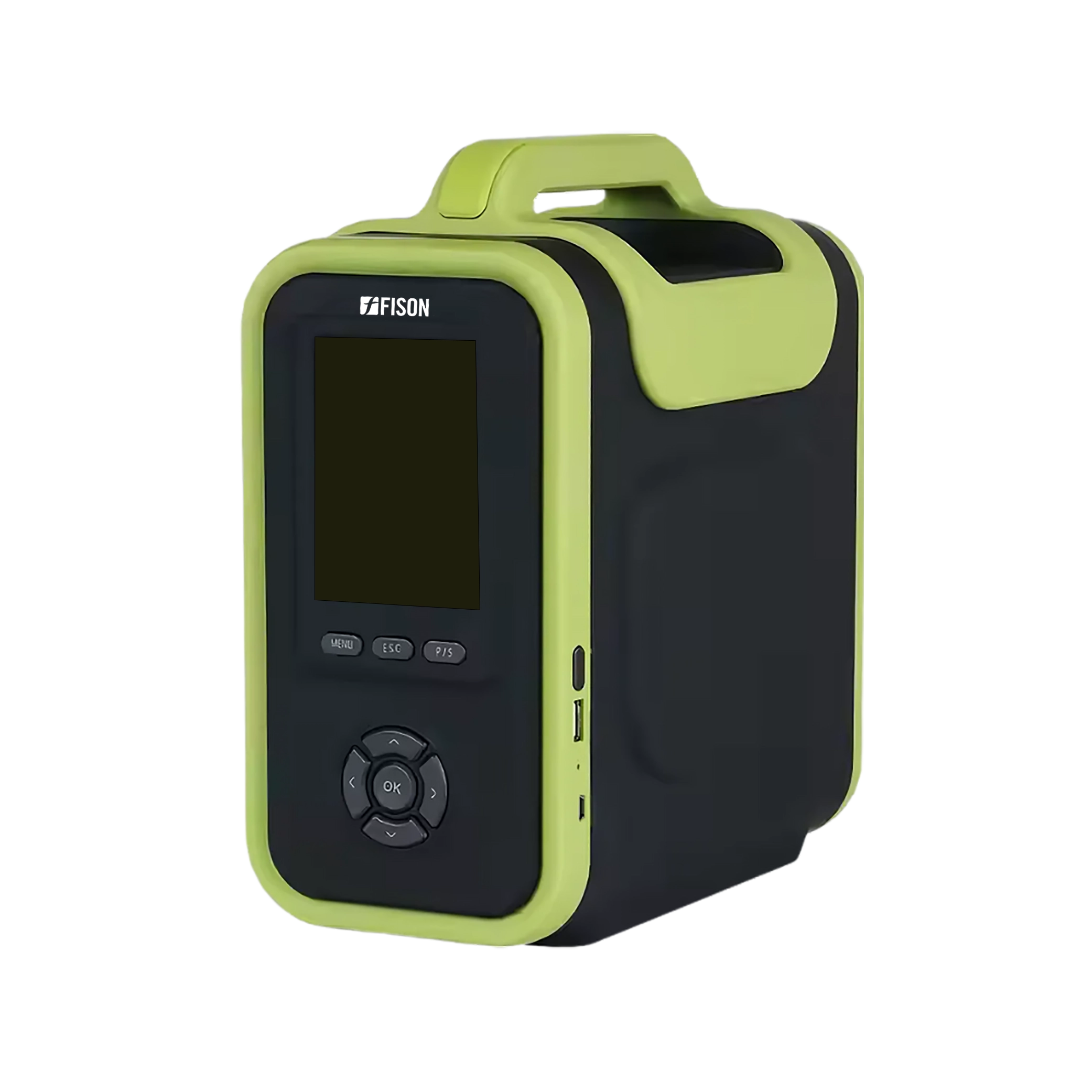

Portable Multi Gas Analyzer FM-PMG-A100

Portable Multi Gas Analyzer FM-PMG-A100 detects 1-18 types of gases, offering flexible and comprehensive monitoring. It features a 3.5-inch HD LCD screen with a resolution of 320 × 480 for clear data display. Its modular
design allows the selection of 1-3 modules, preventing cross-interference. The built-in pump ensures faster gas sampling, and multi-layer filtering protects the sensors from oil, water vapor, and dust. Our gas analyzer
provides reliable performance for industrial gas detection applications.

Specifications
Gas Detected NO, SO₂, CO, CO₂, CH₄
Detection
Principle
Electrochemistry (NO, SO₂), Infrared Ray
(CO, CO₂, CH₄)

Measuring
Range
NO: 0 to 5000 ppm
SO₂: 0 to 5000 ppm
CO: 0 to 50% VOL
CO₂: 0 to 25% VOL
CH₄: 0 to 50% VOL
Resolution 1ppm (SO₂, NO), 0.01% VOL (CO, CO₂, CH₄)
Precision ≤ ± 2% F.S
Display 3.5-inch HD LCD screen
Display
Resolution
320 × 480
Data storage Independent SD memory card, standard
32G, automatic measurement data
record, customizable record time
interval
Data
transmission
RS485 signal output, USB interface data
transmission, with PC software, can
download storage, analyze and print
data
Battery 5200 mAh rechargeable lithium battery
Battery Hours More than 32 hrs with single gas and 24
hrs with six gases together
Pump flow rate 500 mL/min
Explosion-proof Ex Ic IIC T3 Gc
Charger Standard Micro-USB charging port with
9V/2A charger
Alarm Fault alarm and low battery alarm

Wireless
transmission
distance
Bluetooth is less than 10 m, and WIFI
outdoor single point is less than 500 m
Network
frequency
2.4G high frequency
Working
Humidity
0 to 95% RH
Temperature -40℃ to +70℃
IP grade IP66
Dimension (H ×
W × D)
260 × 230 × 120 mm
Weight 3700 g

Features
1. High customizability
2. Multiple display function
3. 150° wide viewing angle
4. Password protection and safety reminders
5. Optional high-temperature probe for harsh environments
6. Long standby time

Applications
Portable Multi gas analyzer is widely used in chemical manufacturing industries for detecting emissions in waste gas, air pollution monitoring, flue gas analysis, and indoor air analysis.

Accessories Optional
High Temperature Sampling Probe
