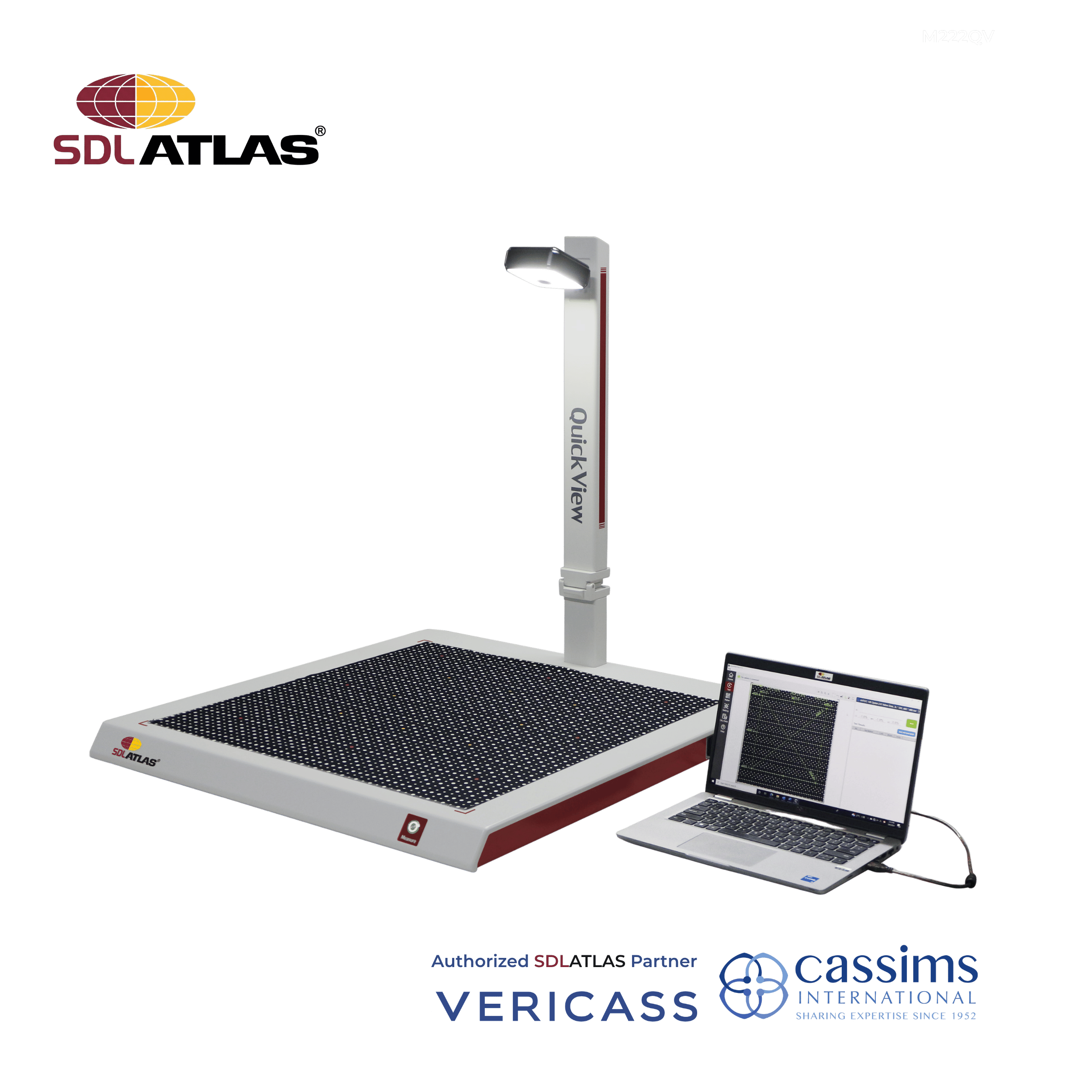

The QuickView Fabric Shrinkage Analyzer measures fabric shrinkage results quickly and accurately using digital optics and advanced computer imaging to eliminate the potential associated with traditional manual measurement techniques.
Designed to work with any dimensional stability test instruments and all recognized international standards, including: AATCC 135, 187 and 179, ISO 6330, 5077, 3005 and 3759.
Equipped with a high-definition camera, the QuickView Fabric Shrinkage Analyzer recognizes benchmark dots within a generous sample identification area of 650 x 650 mm with an accuracy of +/- 1 mm between pairs of dots. The software intelligently calculates the spatial relationships and straight-line distances between these dots to deliver comprehensive shrinkage results for both the warp and weft directions as well as the diagonal skew of the fabric.
Includes: Customizable Software for creating personalized test dimensions, Marking Template, and Sample Weight
HD camera, frame grabber and software deliver instant measurements
Sample identification area of 650 x 650 mm with accuracy of +/-1 mm among pair of two dots
Measures both fabrics and garments of any color including patterns
Software can generate QR codes for test methods and fabric information of tested sample. Subsequent testing instantly derives a shrinkage indicator by recognizing the saved fabric data.
Output results download into Excel for storage and analyzing
Ordering Information
| Part Number | Description |
|---|---|
| 109789 | QuickView – 110–230V, 50/60Hz |
