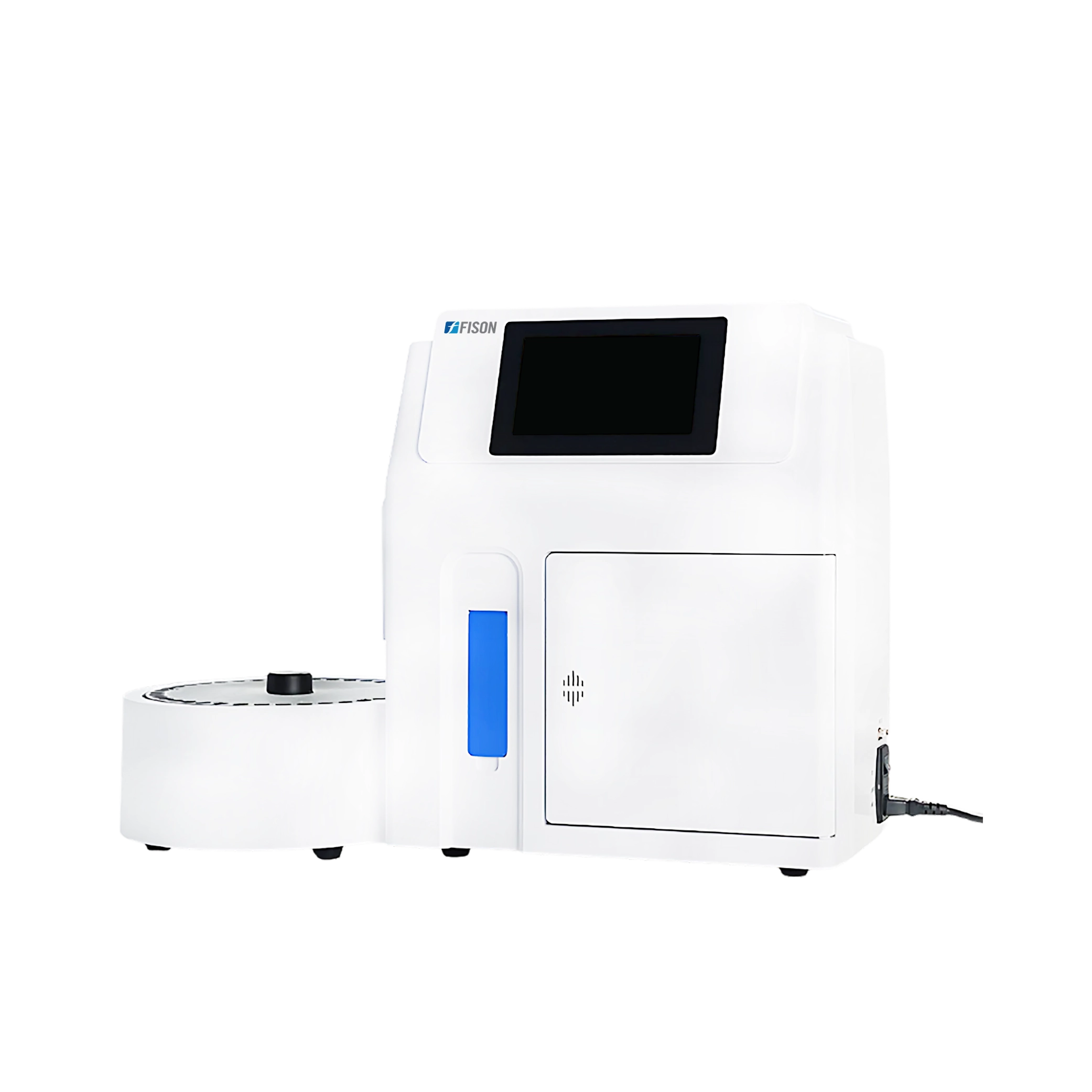

Semi-auto Electrolyte Analyzer FM-SAE-A100

The semi-automatic Electrolyte Analyzer FM-SAE-A100 determines ion concentrations in a 200 μL sample volume within 25 seconds. Incorporated with the latest ion-selective electrode technology for reliable analysis. Designed with automatic monitoring and filtering of air bubbles to improve accuracy. Features wave and pipeline flushing to prevent cross-contamination. Our Semi-auto Electrolyte Analyzer facilitates quantitative diagnosis of electrolyte disorders.

Specifications
Sample Type: Whole blood, serum, plasma,
cerebrospinal fluid, dilute urine
Sample Volume 200 μL
Measuring Time ≤ 25s

Analysis Method: Ion selective electrode (ISE)
Measuring Parameters K+, Na+, Cl-, iCa2+, nCa2+, TCa2+,
TCO2, pH, AG
Measuring Range K+ 0.5 to 20 mmol/L
Na+ 15 to 200 mmol/L
Cl- 15 to 200 mmol/L
Ca2+ 0.1 to 6 mmol/L
TCO2 2 to 70 mmol/L
pH 4 to 9
Resolution K+ 0.01 mmol/L
Na+ 0.01 mmol/L
Cl- 0.01 mmol/L
Ca2+ 0.01 mmol/L
TCO2 0.1 mmol/L
pH 0.01
Working Temperature 10 to 40 ℃
Relative Humidity ≤ 80%
Atmospheric Pressure 86 to 106 kPa
Number Of Sample
Positions
30
Injection Mode Manual
Calibration Automatic and Manual calibration
Display 7-inch HD touch screen
Language Customizable
Storage Up to 50,000 test results

Printer Built-in thermal printer
Interface RS232 port
Power Supply AC 110 to 240 V, 50 to 60 Hz, 70VA
Dimensions (W × D ×
H)
405 × 214 × 471
Packaging Dimensions
(W × D × H)
500 × 390 × 530
Net Weight 13.13 kg
Gross Weight 16.73 kg

Features

1. Sample volume detection
2. Automatic potential tracking correction
3. 7-inch high-definition touch screen
4. Easy integration with Laboratory Information System
5. Auto power shut off protection
6. Fault warning alarm

Applications

Semi-auto Electrolyte Analyzer helps in clinical routine diagnostics and emergency assessment of ion concentrations during electrolyte imbalances.
