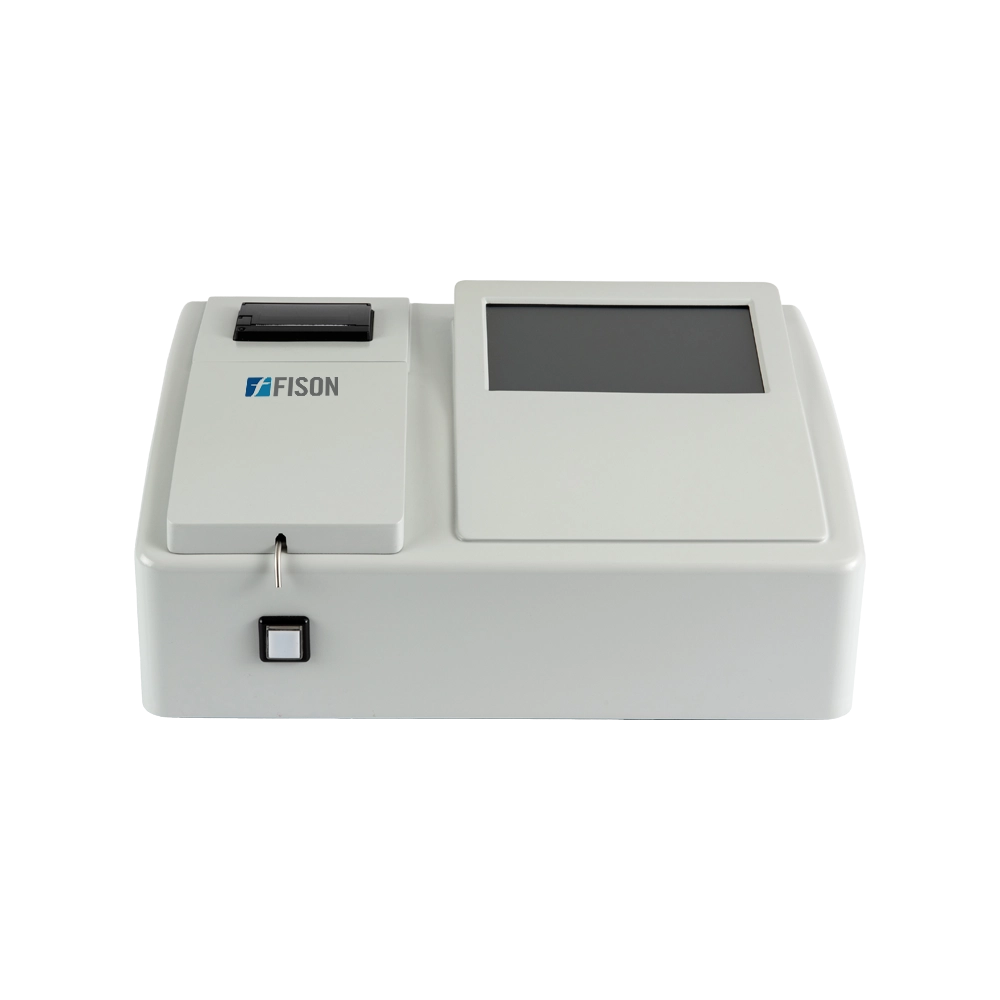

Semi- Automatic Biochemistry Analyzer FM-SAC-A100

Semi-automatic Biochemistry analyzer FM-SAC-A100 is the most demanding tool covering a wide range of test components. It determines the appropriate functioning of the liver, kidney, heart, immune system proteins, and lipid profile testing. Measure absorbance ranging from 0 to 4.500 Abs, enabling accurate detection across a broad spectrum of concentrations. Equipped with 10 incubators set at 37 °C with a tolerance of ±0.3°C, ensuring optimal conditions for sample incubation. Choose from Kinetic, End Point, Two Point, and Absorbance test modes, offering flexibility for diverse laboratory requirements.

Specifications
Test parameters
ALT, AST, ALP, T-BIL, D-BIL, TP, ALB, TTT, CHR,
Nh3, BUN, CRE, UA, URECO2-CP, γ-GT, T CHO, TG, HDL-C, LDL-C, CK, CK-MB, LDH,
IGA, IGG, IGM, C3, GLU, HGB, AMS

Incubators 10 (37± 0.3 ℃)
Timers 3
Test Modes Kinetic, End point, Two-point, Absorbance
Test
Compatibility
Flow cell and Cuvette
Wavelengths 340, 405, 492, 510, 546, 578, 630nm
Wavelength
Precision
±2 nm, width ≤ 10nm
Absorbance
Range
0 to 4.500 Abs
Memory 10,000 sample results, 90 test items preprogrammed
Light Source Lamp hibernating function for longer life
Interface RS232, PC connecting
Data Storage ≥10,000
Absorbance
Precision
Outside 0.0001 Abs, Inside 0.00001 Abs
Carry Over < 1%
Repeatability
CV
< 1%
Sample
Volume
0-3000 µL (≥ 500 µL recommend)

Quality Control
Curve
X, SD, CV%, L-J quality control curve for
each item
Flow Cell 32 µL quartz glass, 10 mm
Lamp Philips 6V 10W Halogen Lamp
CPU ARM series high speed micro-CPU
Display 7-inch Color LCD touch screen
Printer Internal thermal sensitive printer
Working
conditions
RS232
Power Supply Temperature: 0 ℃ to 40 ℃, Humidity: ≤ 80%
Dimensions 100 to 240 VAC, 50 to 60 Hz, 100VA
Weight 340 × 270 × 160 mm

Features
1. Semi- automatic Chemistry analyzer with touch screen
interface
2. Intuitive operation and clear visualization of results
3. Seamlessly switch between flow cell and cuvette test
modes
4. Efficient data management and retrieval
5. Benefit from the lamp hibernate function
6. PC Connectivity via RS232 interface

Applications
Semi- automatic Chemistry analyzer is widely used across healthcare, pharmaceuticals, beverages, environmental monitoring, etc.
