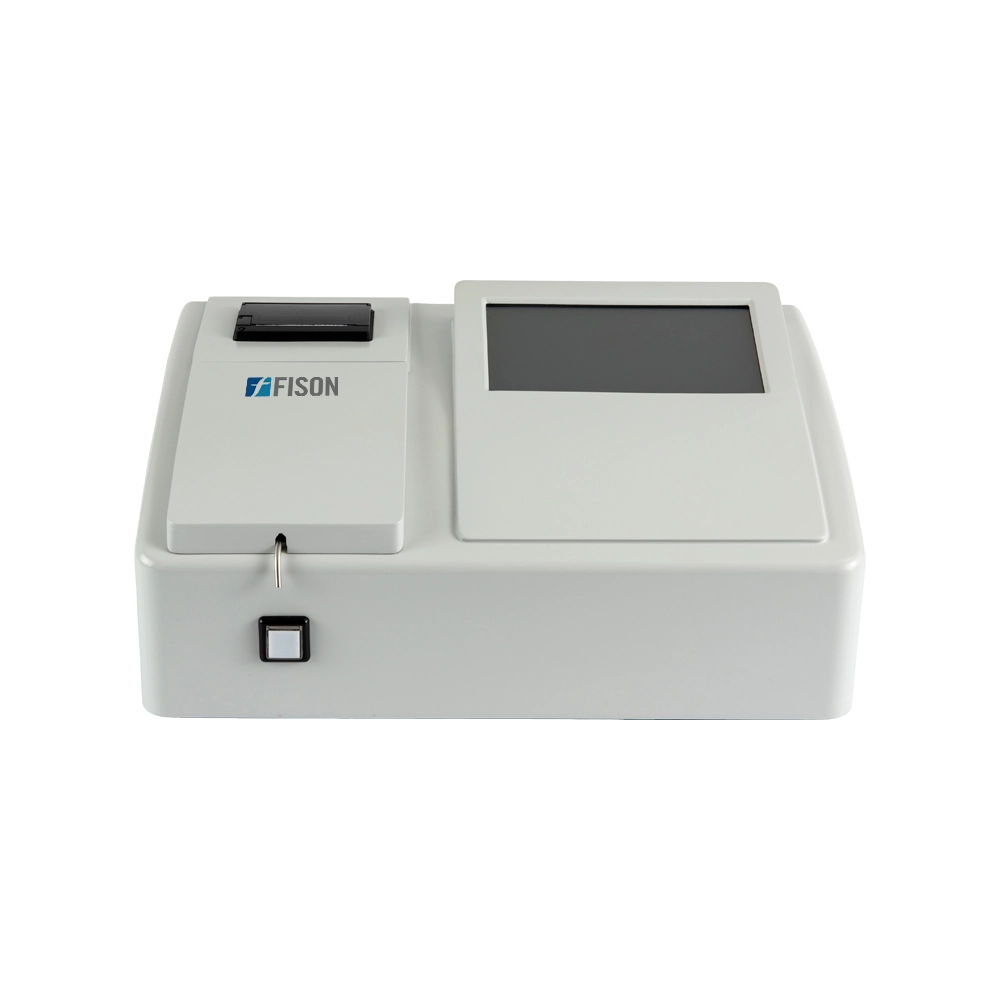

Semi-Automatic Biochemistry Analyzer FM-SBC-A100

Semi-Automatic Biochemistry Analyzer FM-SBC-A100 offers an absorbance range of 0.0–4.0, ensuring accurate analysis for both low and high-concentration samples. It uses back-spectrophotometry to measure light absorption accurately for turbid or scattered samples. This unit features a separate signal processing circuit for each wavelength for multi-wavelength analysis. Our semi-automatic biochemistry analyzer adopts a touch screen for easy and accurate test result analysis.

Specifications
Absorbance Range 0.000 to 4.000 Abs
Resolution 0.001 Abs
Temperature 10℃ to 30℃

Humidity 30 to 80%
Temperature
accuracy
±0.1℃ at room temperature 37°C
Temperature
Control
Peltier elements
Precision Error <1%
Analysis Method Kinetics, End Point, Two Point, MultiPoint
Optical System 340 to 800 nm
Standard Filters 340, 405, 492, 510, 546, 578, 630 nm
wavelength
Filters Accuracy ± 2 nm
Flow Cell Titanium quartz alloy
Flow Cell Capacity 33µL
Optical Path 10mm
Precision Drift <5mAbs/hr
Printer <1%
CPU Thermal printer, 57mm width paper
Memory Samsung S5PV210, Cortex-TM-AB,
1GHz
Light Source DDR2 SDRAM 256MB, Flash 4GB
Interface Halogen lamp 10W/6V

Dimensions (L × W ×
H)
3 USB ports, 1 RS232 serial port
Net Weight 380 × 280 × 170 mm
Gross Weight 5 Kg

Features
1. Reduces risk of contamination
2. Prevents mechanical movements
3. Equipped with titanium flow cell
4. Integrated with 7 membrane filters
5. Features a hermetic optical system

Applications
Semi-Automatic Biochemistry Analyzer FM-SBC-A100
performs precise biochemical tests including enzyme
activity, glucose levels, and protein concentrations, and is
used in clinical diagnostics, medical laboratories, and
research institutions for routine tests and advanced
biochemical analysis.
