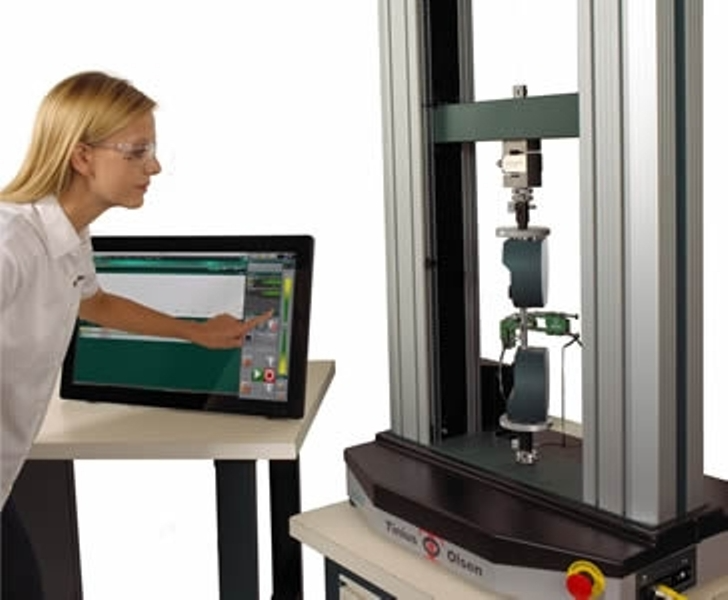

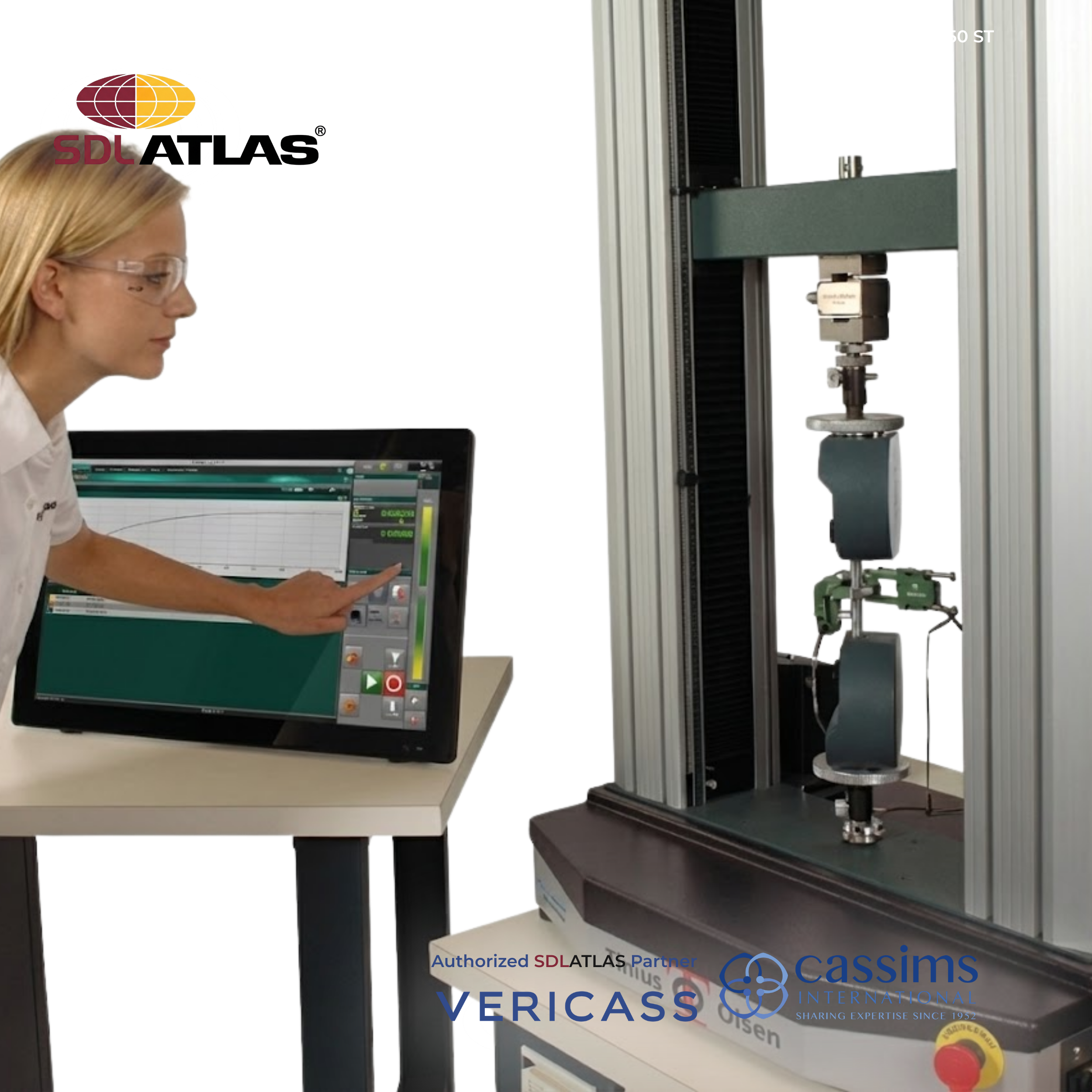

The Dual Column Benchtop ST series testing machines are designed to test a wide range of materials, including, but not limited to: plastics, films, paper, packaging materials, filter material, adhesives, foils, food, toys, medical devices and components, in tension, compression, flexure, shear, and peel.
Adaptable
The ST series instruments are endlessly adaptable to the specific needs of the customer through a variety of options.
A comprehensive selection of self identifying loadcells, grips and fixtures to hold the simplest to most complex samples
T slots built into machine column to allow accessories to securely mounted to the test frame.
Up to 8 connections can be made with the test frame via built-in accessory connection panels.
Various system interface options available, from a familiar tethered handheld interface, a wireless Bluetooth interface panel, or virtual machine controller
Frames can be modified by adding extra height to the test area by up to 400 mm
Solid Design
The construction of the machine frame, leadscrews, and drive system make them unique
Even at full capacity, these frames have excellent rigidity with negligible frame deflection.
Can be operated at speeds ranging from a minimum of 0.001 mm/min to a maximum of up to 1000 mm/min
Versatile

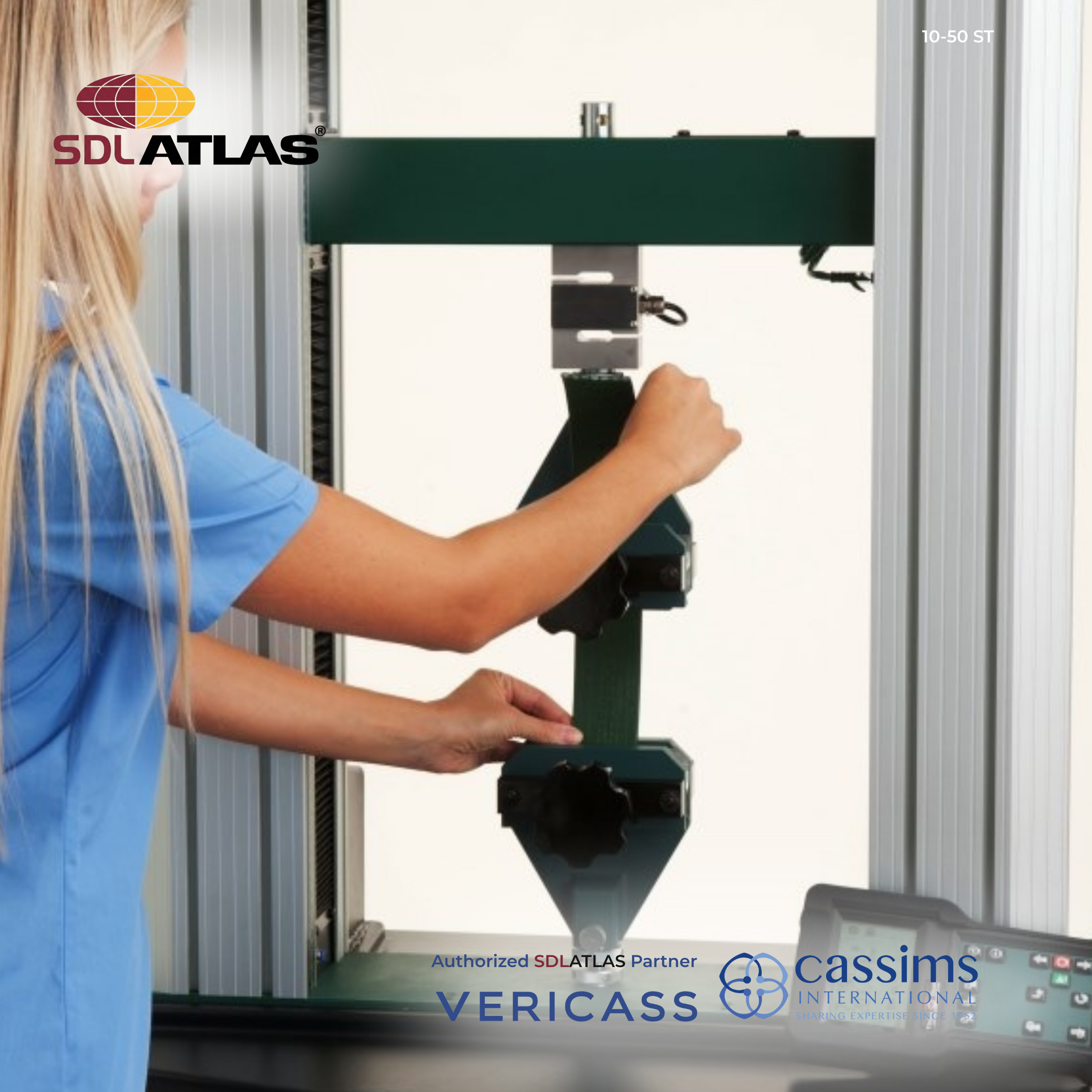

Grips and fixtures can be easily mounted securely with a simple locking pin
Advanced lock pin design allows for rapid load cell change
Wide Testing Range

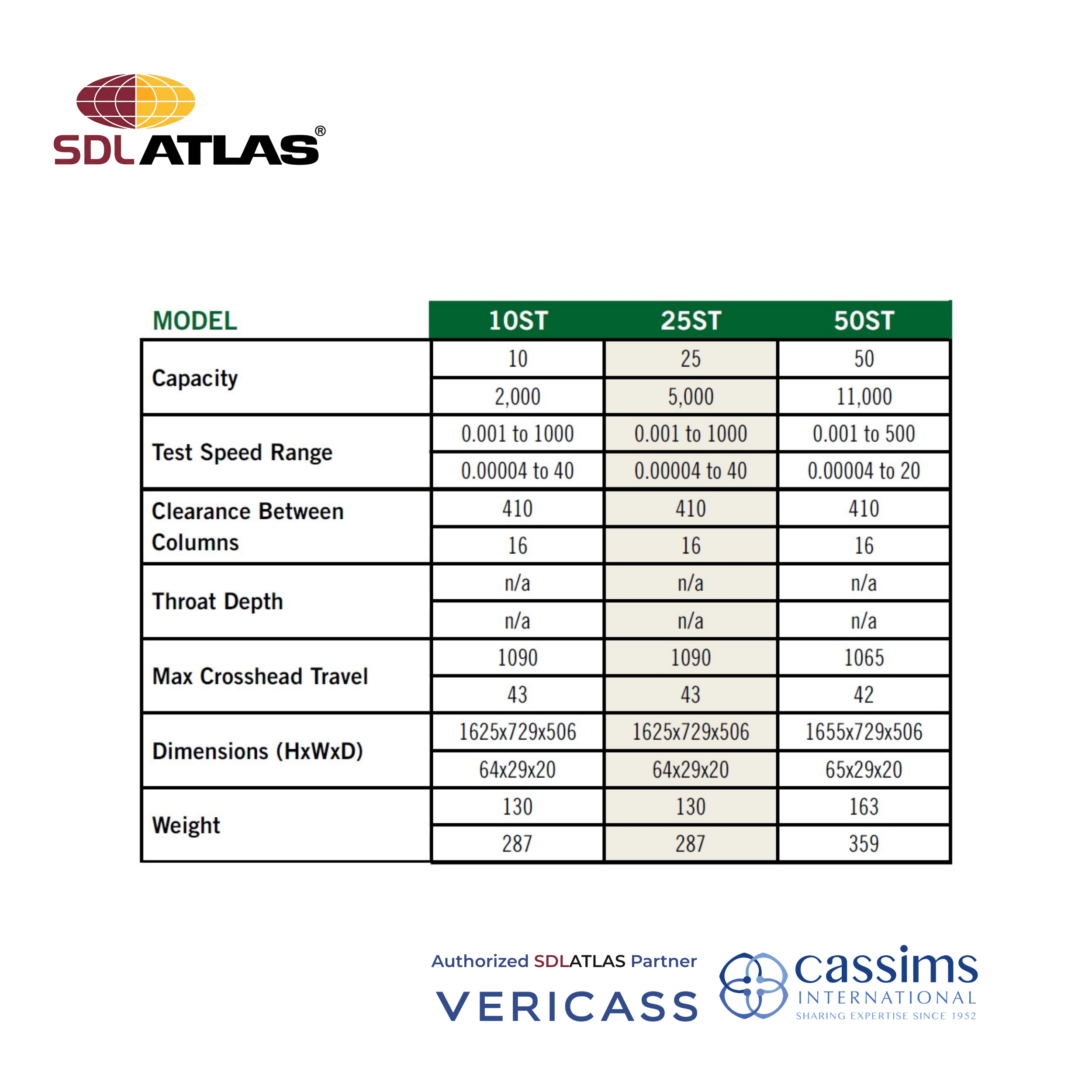

Three single column benchtop models are available:
Built In Pneumatic Supply
Connections for compressed air built into the machine in the rear of the machine base allows for convenient operation of pneumatic grips

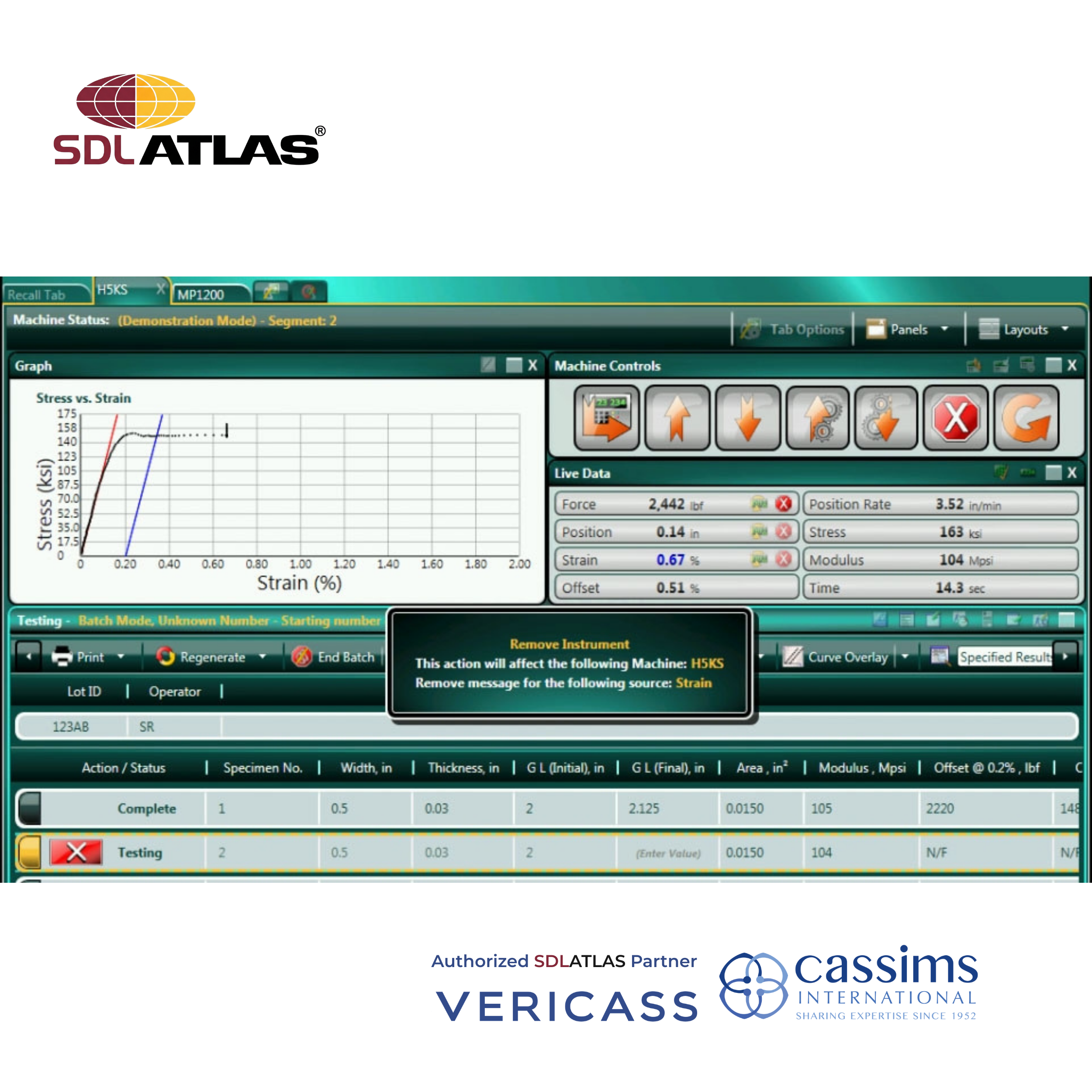

All Tinius Olsen testing machines are powered by Horizon Software. This comprehensive software package features:
Test Editor
Tabbed Test and Recall Area Multiple Machine Control Output Editor
Multilingual
Method Editor
Result Editor
Test Method Library
Multifaceted Security
Click here for more information on Horizon Software
No standards assigned.
Please fill the below details to receive the link for the product brochure
