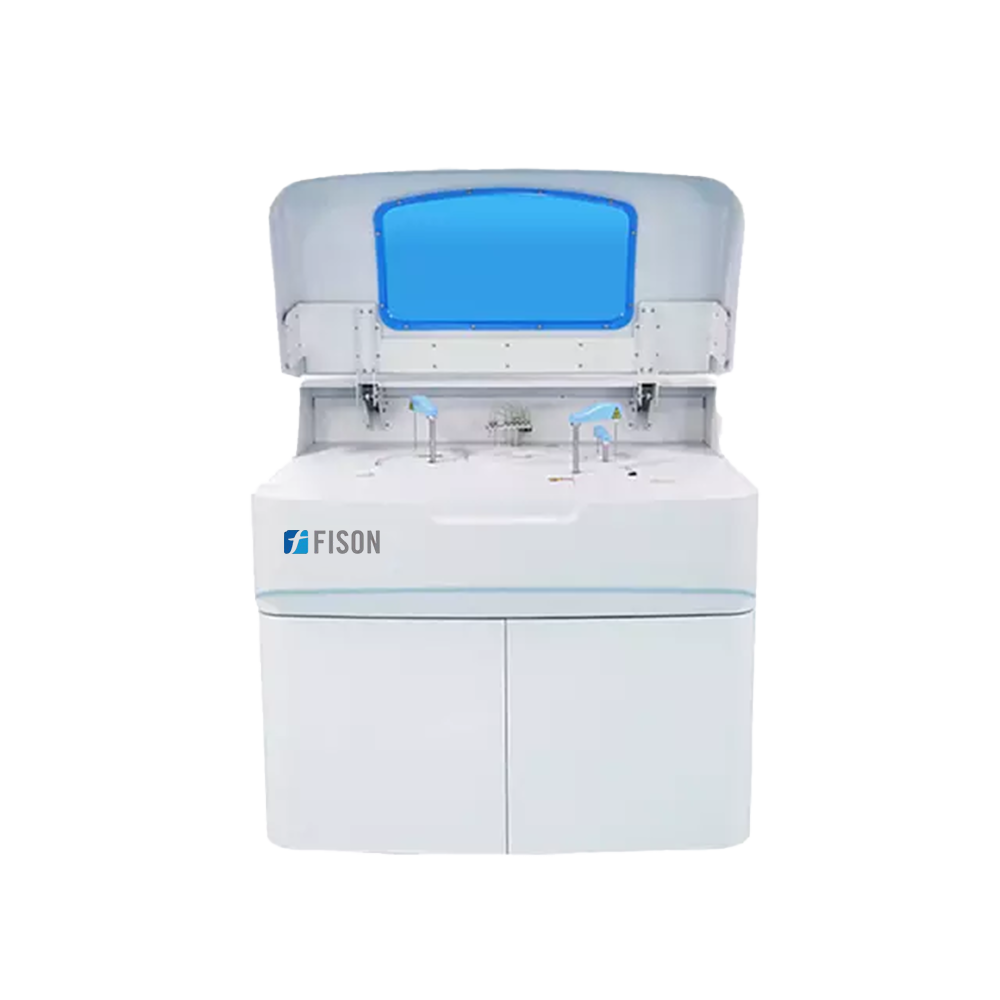

Automatic Chemistry Analyzer FM-ACA-B100

Automatic Chemistry Analyzer FM-ACA-B100 can perform 400 tests per hour with a small sample volume of 1 to 70 µL. Sample probe features anti-collision and real-time volume detection for accurate measurements. Stable tray temperatures facilitate the efficacy of reagents during analysis. Integrated with user-friendly software for simplified data documentation. Our Chemistry Analyzer carries out endpoint, fixed point, kinetic, and turbidimetry assays.

Specifications

Throughput 400 Tests / hour
Analysis Method End-point, Fixed-time, Rate (Kinetic), Turbidimetry
Sample Volume 1 to 70 µL
Number Of Sample
Positions
60
Reagent Volume 10 to 350 µL

Number Of Refrigerated
Reagent Positions
90
Reagent Tray
Temperature Range
2 to 8 °C
Reaction Tray
Temperature
37 ± 0.1°C
Reaction Tray
Temperature Control
Type
Real time monitoring
Sample Probe Teflon coating, anti-collision function, liquid level
detection
Mixer Probe Independent stirring
Probe Washing 7 step automatic washing system, both interior and
exterior washing
Cuvette Type Reusable
Number Of Cuvette 120
Cuvette Optical Length 6 mm
Cuvette Washing Automatic
STAT Function Yes
Optical System Post-spectral spectrophotometry
Wavelength 340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750,
800 nm
Absorbance 0 to 3.5
Light Source Halogen-tungsten lamp, 12V/ 20W

Calibration Both Linear and Non-Linear
Linear: K factor, 1-point, 2-point, multipoint
Non-Linear: Spline, Polygon, Logit-4P, Logit-5P
Quality Control Real-time QC, Westgard multi rule, Cumulative Sum
Check, Twin Plot (2D), Daily QC, Monthly QC
Software Windows 7/8/10, 32 or 64bit
LIS System Bi direction, supports HL7 protocol
Interface LAN port access
Printer External, multiple reporting modes
Working Temperature 15 to 30°C
Operating Humidity 40 to 85 %
Water Consumption Deionized water: <12 L/h
Certifications CE, FDA, ISO9001, ISO13485
Power Supply 220V ± 10% 50/60 Hz, 110V ± 10% 60 Hz, 500 VA
Dimensions (W × D × H) 1170 × 775 × 1145 mm
Packaging Dimensions (W
× D × H)
1358 × 935 × 1387 mm
Net Weight 190 kg
Gross Weight 255 kg

Features
1. High-throughput processing
2. Automatic sampling

3. Built-in quality control mechanisms
4. Real-time monitoring
5. 7 step independent probe washing
6. 120 reusable cuvettes
7. Probe liquid level sensor

Applications

Automatic Chemistry Analyzer conducts routine clinical tests, biomarker diagnosis and immunoassays in hospital settings. It is also utilized for nutritional, toxicological, environmental testing and quality control analysis.
