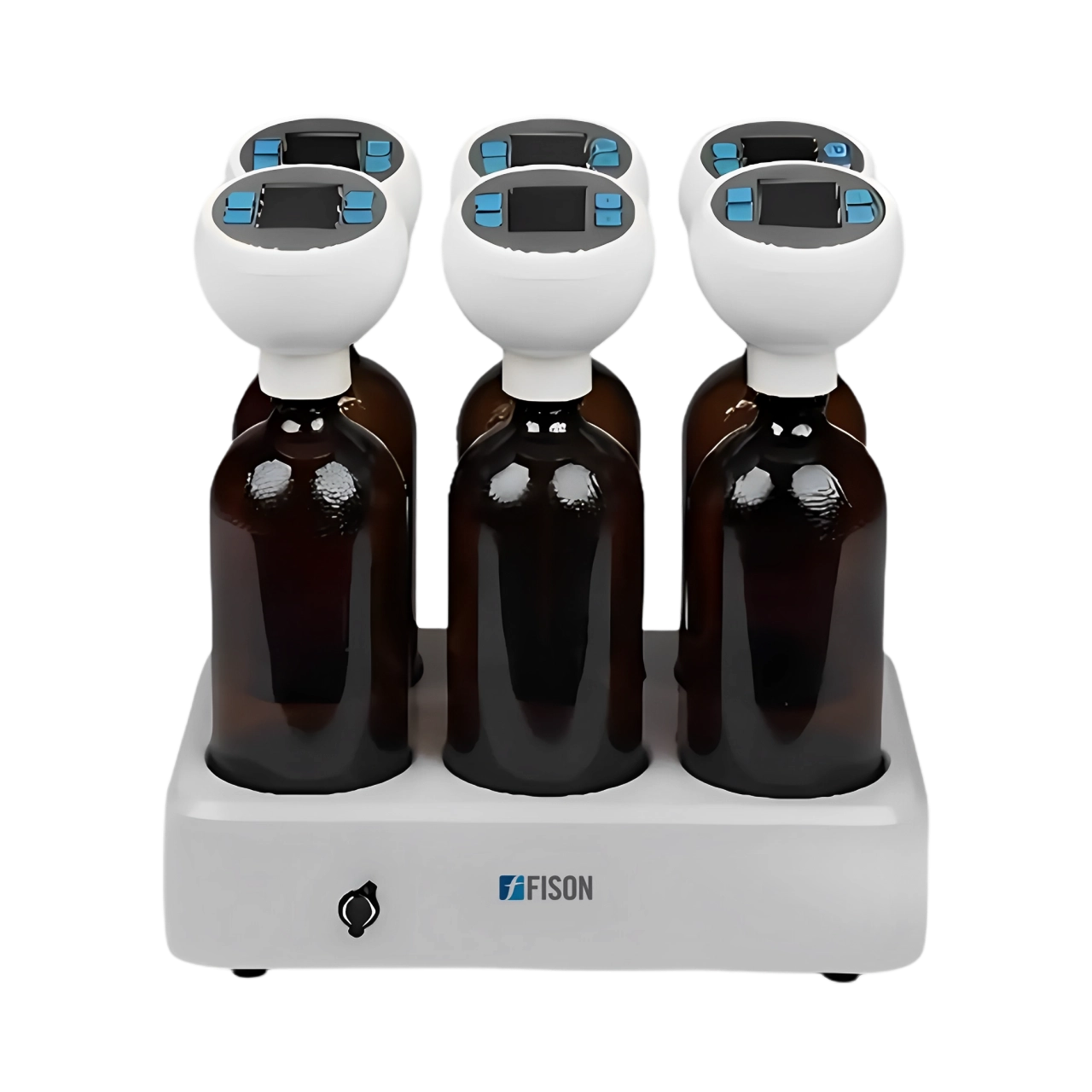

BOD Analyser FM-BOD-A101

BOD Analyzer FM-BOD-A101 supports up to 6 bottles with 580mL sample volume each. It offers a broad measurement range of 0-4000 mg/L, suitable for trace-level detection to high-concentration analysis. It features a microprocessor-controlled system that optimizes performance across various applications, ensuring reliable results. Our analyzer features electromagnetic stirring for uniform sample distribution, ensuring accurate measurements.

Specifications
Sample Capacity 580 mL
Measuring Range 0 to 4000 mg/L
Measurement Accuracy ± 10 %
Cultivation Temperature 20±1℃

Display Resolution 0.1 mg/L < 10 mg/L: 1 mg/L ≥ 10
mg/L
Ambient Temperature 5 to 400C
Ambient Humidity ≤85RH (No Condensation)
Result Recording
Frequency
1 Hour
Air Tightness <0.1 kpa/15 min
Measurement Capacity 6
Data Storage Capacity 100 Records
Testing Duration 1 to 30 Days
Power Consumption 30 W
Power Supply 100 to 240 V/ 50 TO 60 Hz
Stirrer Dimension (L×B×H) 280×206×324 mm
Dimension (L×B×H) 280×206×324 mm
Gross Weight 2.6 kg

Features
1. Flexible testing time
2. Independent test cap operation
3. Test Cap stores up to 100 Records
4. Multi-sample detection
5. Real-time data display

6. Mercury–free differential pressure method

Applications
Fison’s BOD Analyser is suitable for water quality
assessment in laboratories, environmental monitoring
agencies and waste water plants for precise BOD
analysis
