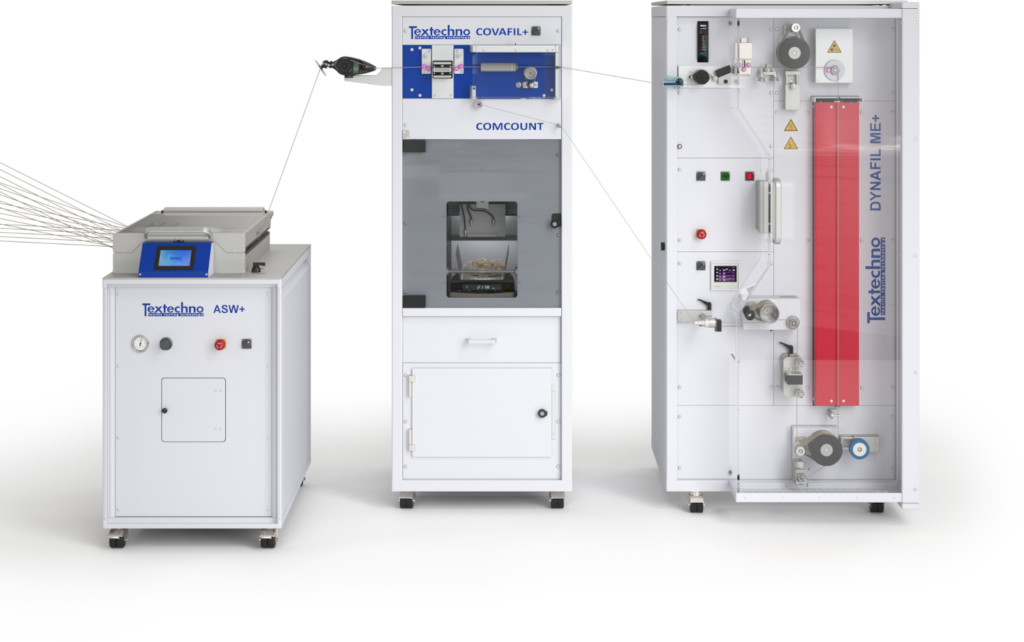

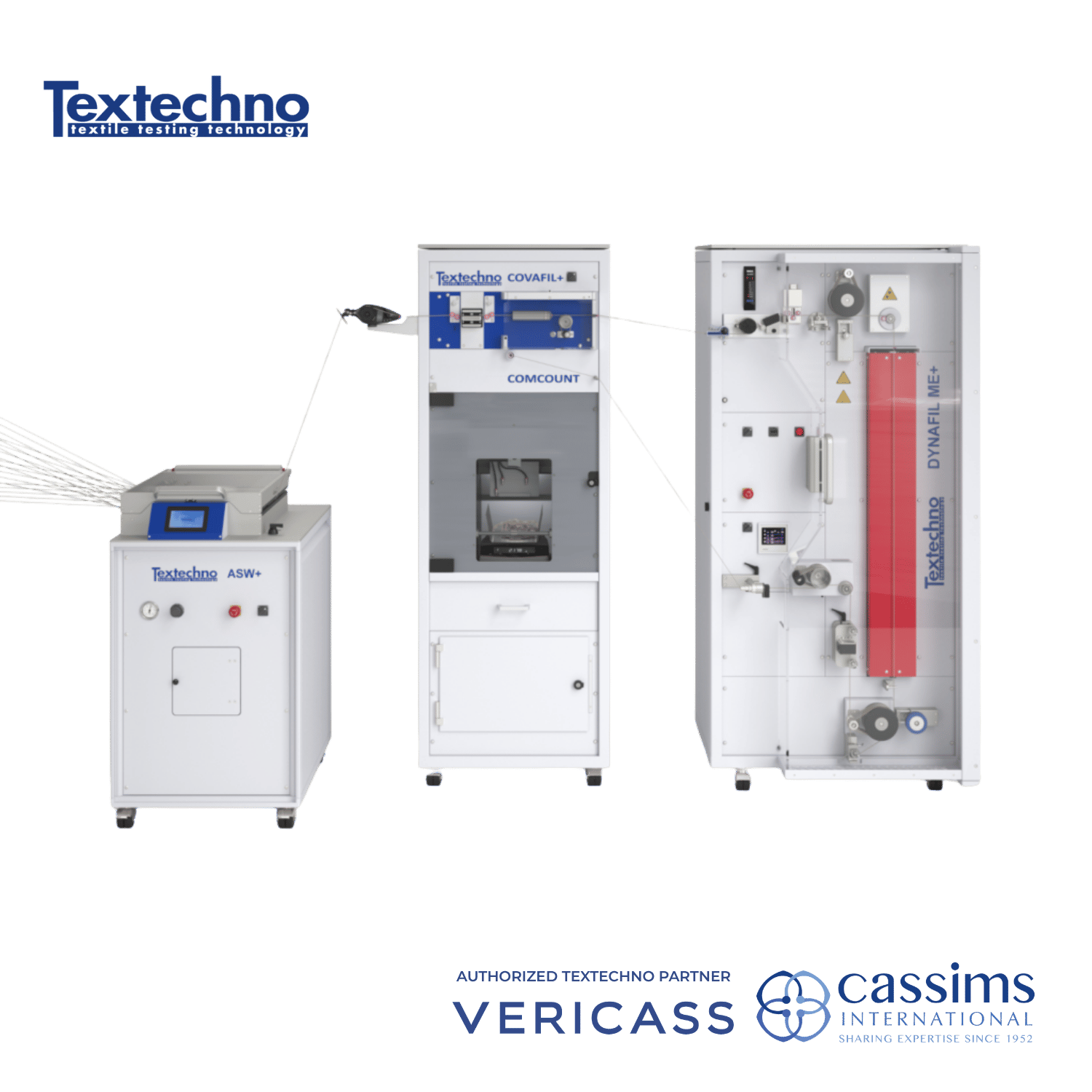

Universal Yarn Tester for Filament Yarns DYNAFIL ME+ |
||||
| The DYNAFIL ME+ is a dynamic yarn tester measuring yarn properties such as draw-force, shrinkage or crimp on the running thread. Since draw-force and shrinkage correlate with the molecular orientation, these parameters are especially indicative for dye-uptake in Polyester. The tester is equipped with two separate godet rollers – optionally with nip rollers – with individual high-precision electronic drives for yarn speeds up to 1000 m/min. A non-contact heater (500 °C) with flap and driving mechanism for automatic threading into the heater channel facilitates threading and allows heater temperature above the melting point of the yarn.
The tester can measure
For testing crimp and shrinkage on texturized yarns, especially BCF, a third godet allows simultaneous measurement of crimp and residual shrinkage. Optionally the instrument can be combined with
|
||||
