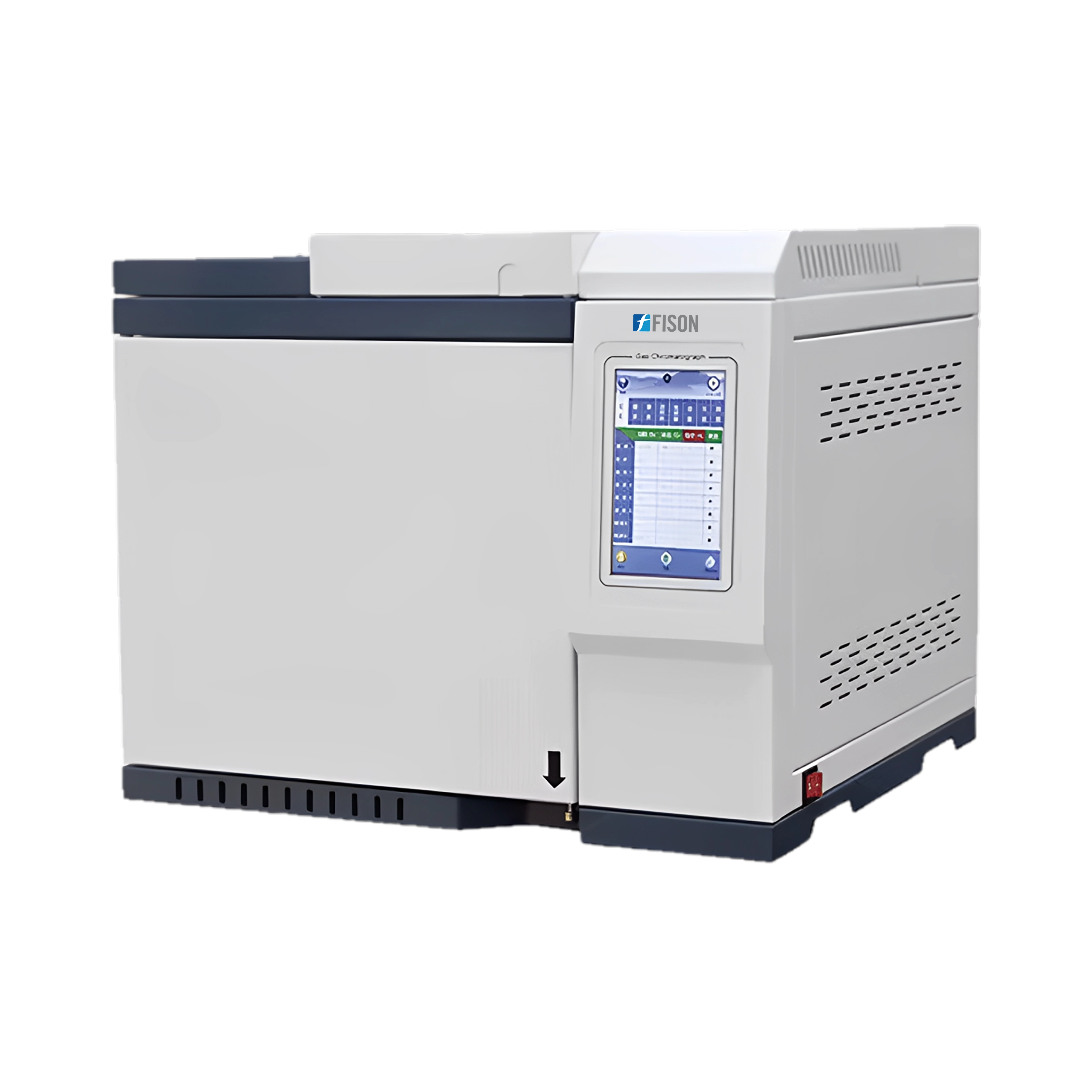

Gas Chromatography FM-GC-A100

Gas chromatography FM-GC-A100 controls temperatures precisely from RT + 5°C to 450°C. It features a high-precision gas flow control system (EPC) for accuracy. It includes self-protection for gas circuit failure and automatic ignition. Innovative sampler design prevents sample sticking to the surface. Various injection methods like headspace sampling, thermal desorption analysis, and liquid automatic sampling are enabled. It can start analyses automatically at set times. The unit offers a user-friendly interface with a color widescreen and unique touch keys. Its modular design allows easy upgrades and compatibility with detectors such as FID, TCD, ECD, FPD, and NPD.

Specifications
Oven Temperature
Range
RT+5 to 450°C
Oven Temperature
Accuracy
≤ ± 0.01℃

Oven Temperature
Program
16-phase
Oven Maximum
Heating Rate
40℃/min
Oven Time Range 0 to 900.9 min
FID Temperature
Range
450°C
FID Detection Limit ≤ 5 × 10⁻¹² g/s (100 ng/µl n-hexadecane – isooctane
solution)
FID Baseline Drift ≤ 2 × 10⁻¹³ A / 30 min
FID Baseline Noise 3 × 10⁻¹⁴ A
FID Linear Range ≥ 10⁻⁷
Injection Method Capillary column split/splitless sampling, Packed Column
sampling, valve sampling, gas/liquid automatic
sampling system, etc.
Injection Inlet 1 to 4, up to 3 capillary column inlets
Injection Type Packed column injection, capillary column injection
Flow Control Range 0 to 1000 ml/min
Flow Control
Accuracy
Pressure: 0.01 KPa, Flow: 0.01 ml/min
Flow Maximum Split
Ratio
1:999
Force Detector
Accuracy
< 2 % of full scale

Force Detector
Repeatability
0.05 KPa
Force Detector
Range
0 to 0.6 MPa
Flow Sensor
Accuracy
< 5 % of full scale
Flow Sensor
Repeatability
0.5 KPa
Sampling Valve
Operation
Can sequentially operate multiple imported automatic
control valves
Power Supply AC 220 V ± 10 %, 50/60 Hz
Packaging
Dimensions (W × D ×
H)
750 × 710 × 720 mm
Weight 70 Kg

Features
1. Gas chromatography offers efficiency, stability, and user-friendly operation
2. 16-phase temperature program at 40°C/min
3. Equipped with Brain Chrom workstation for data processing
4. Built-in Modbus/TCP server for easy connection to DCS
5. Injection types include packed column injection and capillary column injection
6. Flow setting range of 0 to 1000 ml/min
7. Sampling valve can be equipped with multiple imported automatic control
valves

8. Supports 1 to 4 inlets, allowing up to 3 capillary column inlets for injection

Applications

Gas chromatography is employed across diverse sectors for applications such as environmental monitoring, petrochemical analysis, pharmaceutical research, food and beverage testing, forensic investigations, chemical
research, clinical diagnostics, material analysis, quality control, and research and development.
