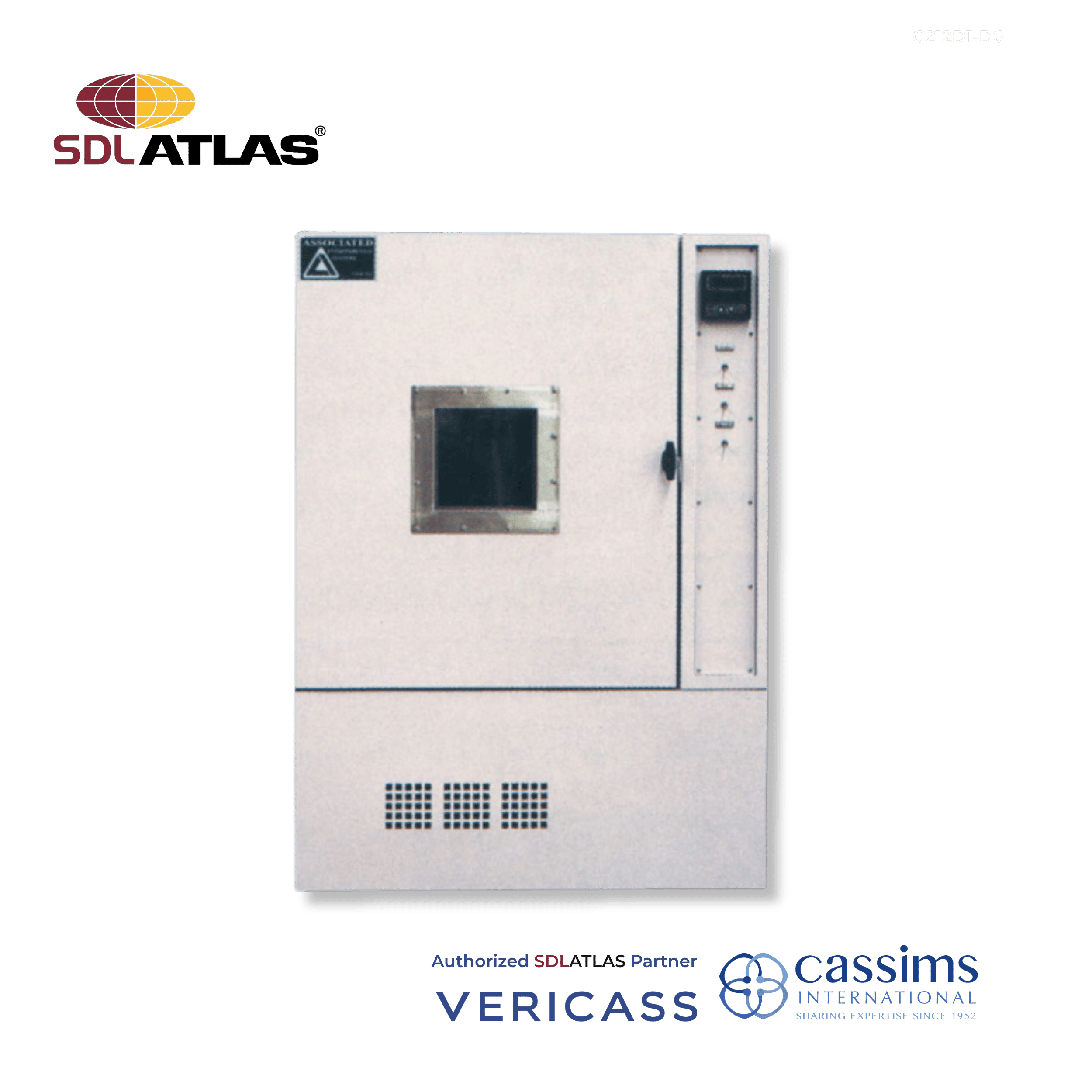

Laboratory Conditioning Chambers

For the conditioning of samples prior to testing, provides conditions from 20% to 98% RH ± 2 and 0°C to 94°C ± 0.5°C.

Three capacities available:

1.5 cu.ft/42 liters, Internal   Height      Width      Depth
325 mm   350 mm   325 mm
13 inch     14 inch     13 inch

5 cu.ft/165 liters, Internal   Height      Width      Depth
600 mm   500 mm   450 mm
24 inch     20 inch     18 inch

10 cu.ft/280 liters, Internal    Height      Width      Depth
750 mm   600 mm   600 mm
30 inch     24 inch     24 inch

Provided with: – Manual Digital Set – Digital Indicating Controller for temperature and humidity. Stainless steel shelf – 2 positions. Forced air circulation. 2 inch access port and plug on left wall. Self contained heating, refrigeration and steam generator humidifier. Vapour – tight welded stainless steel interior.

Optional Extras: 2 – channel automatic programmer with ramp and soak facilities. Self contained recirulating humidity system with 6 gallon (24 liter) reservoir – (eliminates need for piped de-ionized or de-mineralized water). Extra stainless steel shelf.

Note: Custom-designed and built chambers of any required capacity up to room size, with conditions down to – 20°C are available, quotations on request.
