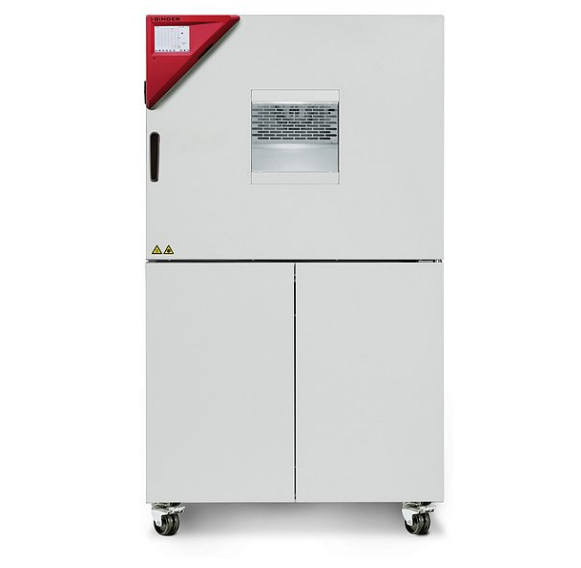

MKT Series – Dynamic climate chambers for rapid temperature changes with extended low temperature range

Main Features

• Temperature range: -70 °C to +180 °C
• 4 zero-voltage relay contacts
• APT.lineTM preheating chamber technology
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• BINDER Multi Management Software APT-COMTM Basic Edition
• Troubleshooting system with visual and audible alarms
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• 2 access ports with silicone plugs: 80 mm, left and right
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• 1 stainless steel rack
• Inner chamber made of stainless steel
• CFC-free refrigerants R-452A and R-23
• Cooling with cascade compressor cooling unit

115 Model:

• 38.61 W x 68 H x 34.08 D (in.)
• 980 W x 1725 H x 865 D (mm)

240 Model:

• 43.9 W x 76.2 H x 36.45 D (in.)
• 1115 W x 1935 H x 925 D (mm)

720 Model:

• 62.3 W x 79 H x 44.9 D (in.)
• 1580 W x 2005 H x 1140 D (mm)
