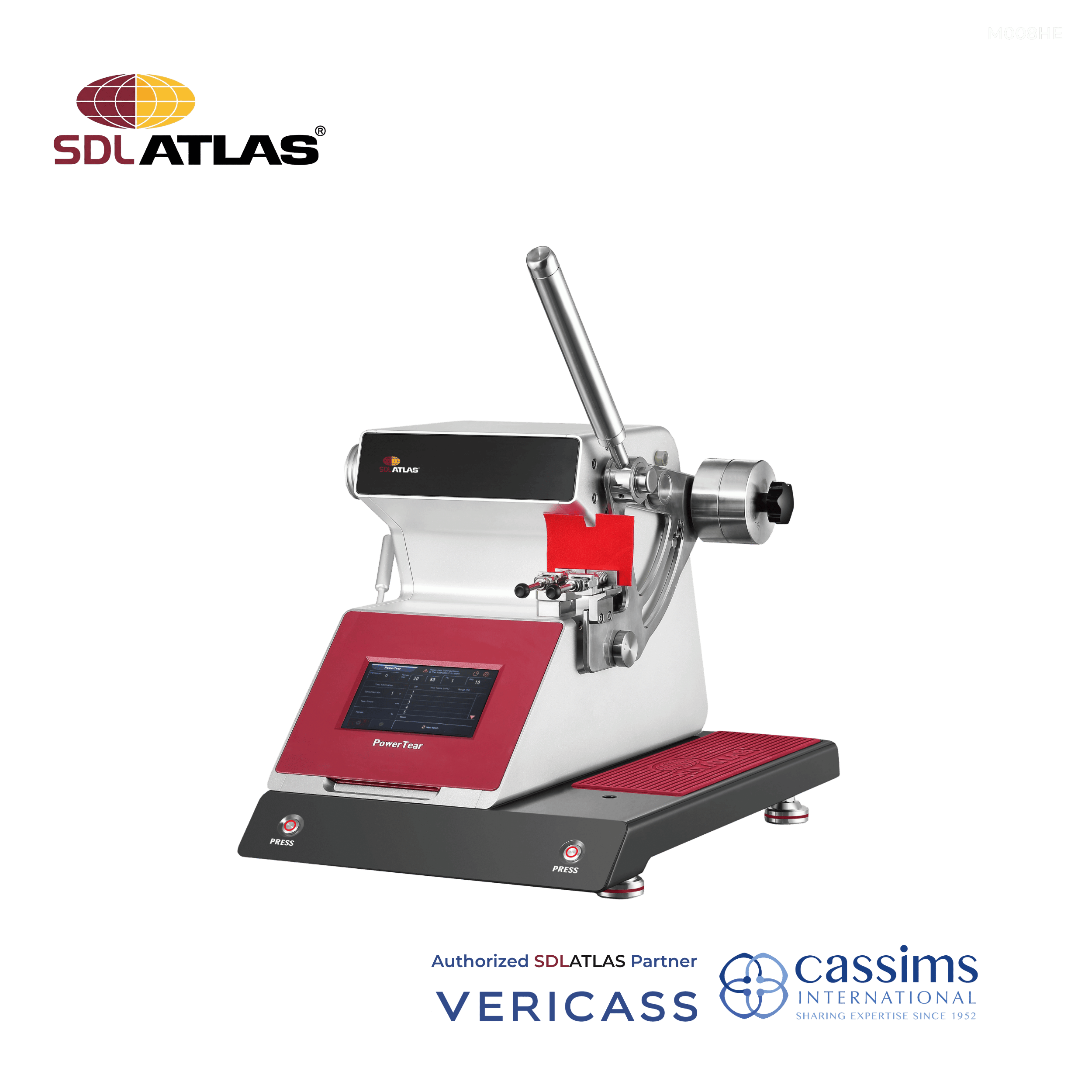

The versatile PowerTear™ High Energy Elmendorf Tear Tester determines falling pendulum tearing strength by propagating a single-rip tear starting from a cut in a sample of paper, cardboard, plastic, or fabric, woven or nonwoven.
The versatility of the instrument allows the testing of both light and heavy weight samples while the sleek new design will enhance the look of any laboratory.
Versatile
Allows for a wide range of capability for testing both fine and heavy weight specimens
Paper
Cardboard
Plastic
Textiles
Nonwovens
Lever clamps make sample loading faster and easier for the operator
Full Color Touch Screen Controller
The new full color touch screen controller makes the instrument even easier to operate while the enhanced unit conversion and results tracking will greatly increase the customer experience during testing. Results are displayed in mN, cN, N, g, kg, oz and lb.
The display shows the sample number and which pendulum is in use.
Microprocessor controller can store 100 test results in the instrument.
Pendulum and weights for 8 N, 16 N, 32 N, and 64 N are included (128 N pendulum kit optionally available).
The use of the optional “E” Pendulum increases the capacity of the PowerTear to 128 N, twice the capacity of many other devices on the market.
Safe
Specifically designed with the safety of the operator in mind
Two button release
Large base
Electromagnetic brake halts the pendulum after the test
Reliable
Sophisticated rotary encoder and the release pin bearing makes tests repeatable
Provides the greatest accuracy available
Accurate
Engineered to provide the most accurate results possible
Adaptable

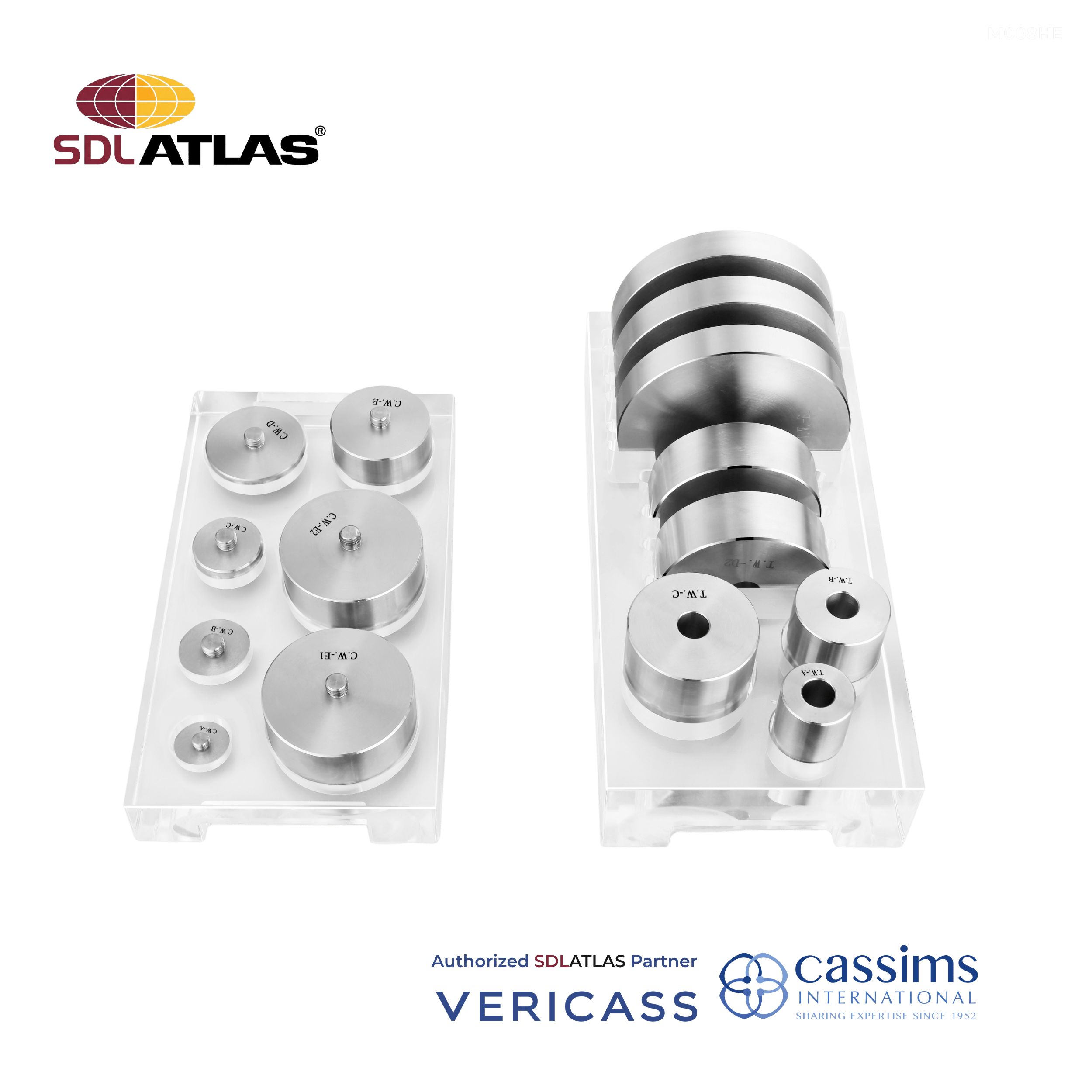

Test weights and check weights come in acrylic racks for safe storage.
8 N, 16 N, 32 N, 64 N provided
128 N test weight and check weight optionally available
Functionality

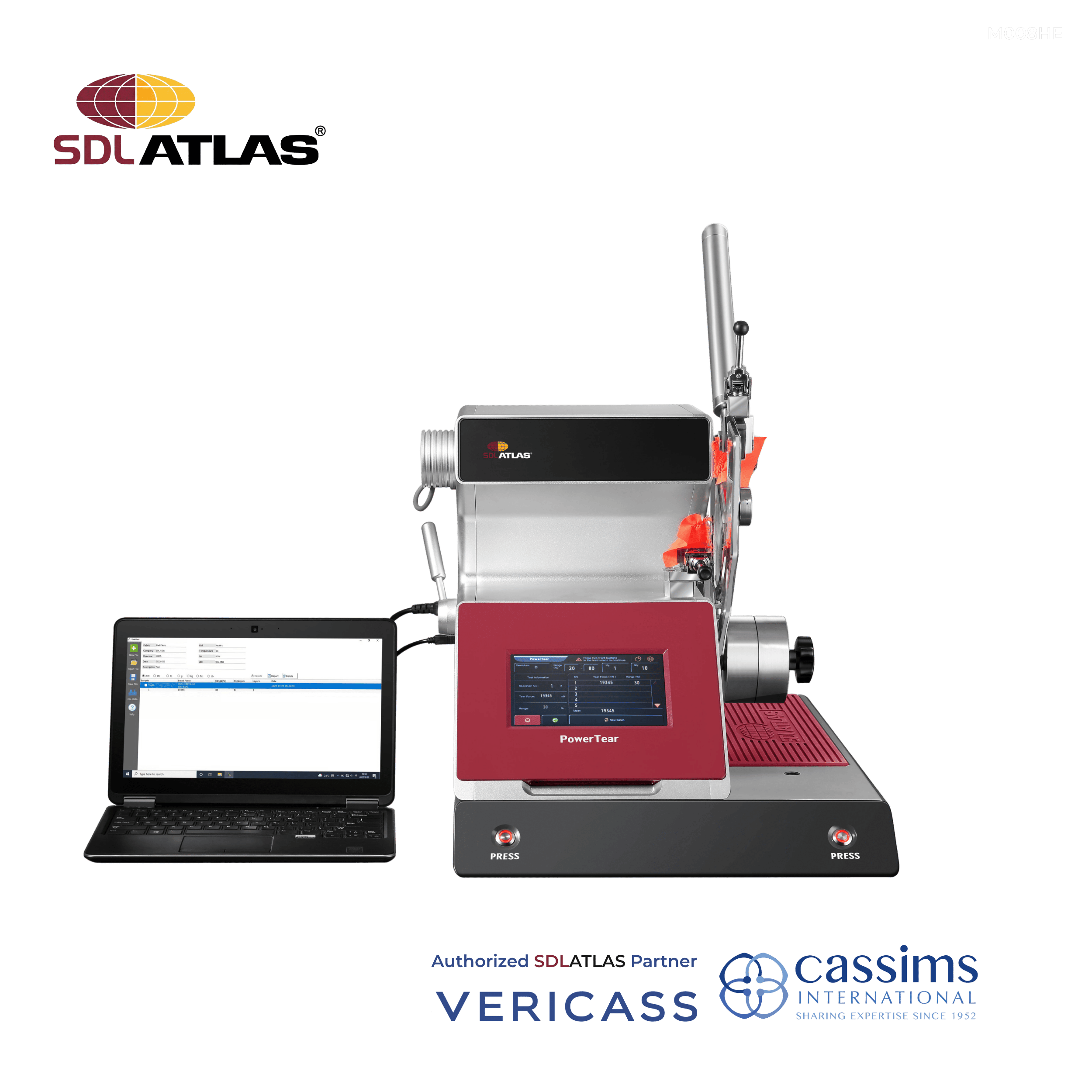

The PowerTear connects via USB to a PC for testing and data storage allowing for searchable records. Software allows inputting of:
Batch information
Remarks
Specimen descriptions
Ability to include or exclude particular test results
Customizable reports
Allows the user to select the desired result calculations which then can be generated and saved as a Microsoft Excel file.
No standards assigned.
