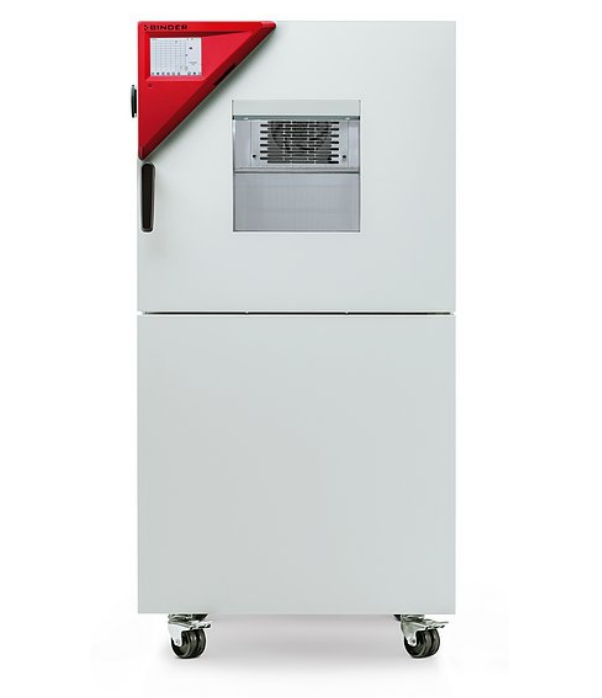

MKF Series – Dynamic climate chambers for rapid temperature changes with humidity control

Main Features

• Temperature range: -40 °C to +180 °C
• Humidity range: 10 % to 98 % RH
• 4 zero-voltage relay contacts that can be activated via MCS controller
• APT.lineTM preheating chamber technology
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• Humidity regulation with capacitative humidity sensor and vapor humidification
• BINDER Multi Management Software APT-COMTM Basic Edition
• Troubleshooting system with visual and audible alarms
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Unit self-test for comprehensive status analysis
• Access port with silicone plug: 50 mm, left
• 4 castors, two with brakes
• Computer interface: Ethernet
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• 1 stainless steel rack
• Complete safety connection kit for water supply and drainage, up to 1 m height
• BINDER test confirmation
• Inner chamber made of stainless steel
• Pt 100 temperature sensor
• Thermal insulation using PUR foam
• CFC-free refrigerant R-452A
• Cooling with compressor cooling unit
• Fin evaporator

056 Model:

• 28.37 W x 56.9 H x 30.73 D (in.)
• 720 W x 1445 H x 780 D (mm)

115 Model:

• 38.61 W x 68 H x 34.08 D (in.)
• 980 W x 1725 H x 865 D (mm)

240 Model:

• 43.9 W x 67.6 H x 36.45 D (in.)
• 1115 W x 1715 H x 925 D (mm)

720 Model:

• 62.3 W x 79 H x 44.9 D (in.)
• 1580 W x 2005 H x 1140 D (mm)
